Master Granite Setup Squares (90 degrees)
Master Granite Setup Squares (90 degrees)
Made to DIN 875 / DIN 876 standard
Granite block with two diamond-lapped measuring faces. Made in Germany to DIN 875 / 876 standard.

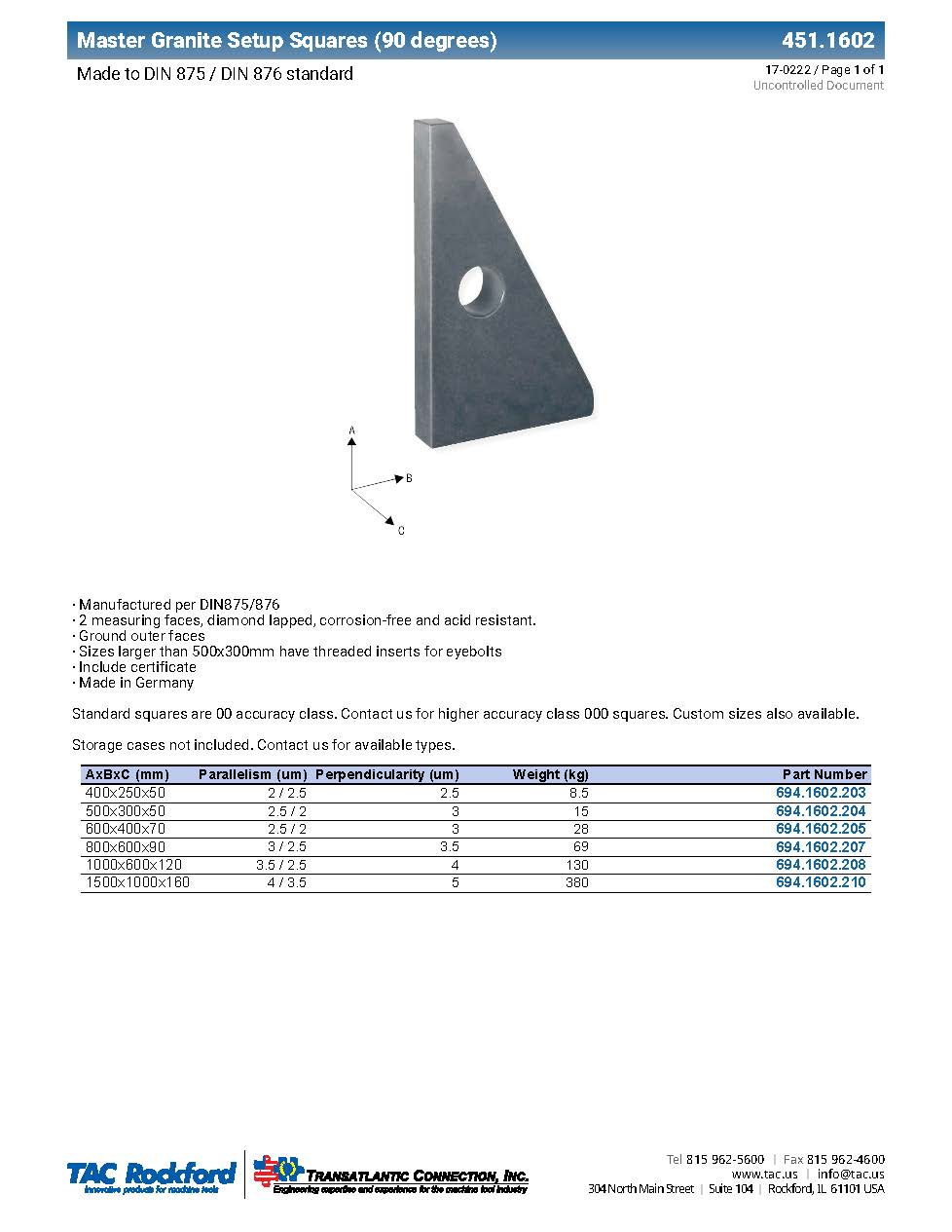

PDF Data Sheet: Master Granite Setup Squares (90 degrees) (451.1602)
Print Data Sheet• Manufactured per DIN875/876
• 2 measuring faces, diamond lapped, corrosion-free and acid resistant.
• Ground outer faces
• Sizes larger than 500x300mm have threaded inserts for eyebolts
• Include certificate
• Made in Germany
Standard squares are 00 accuracy class. Contact us for higher accuracy class 000 squares. Custom sizes also available.
Storage cases not included. Contact us for available types.
| AxBxC (mm) | Parallelism (um) | Perpendicularity (um) | Weight (kg) | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| 400x250x50 | 2 / 2.5 | 2.5 | 8.5 | 694.1602.203
|
||||
| 500x300x50 | 2.5 / 2 | 3 | 15 | 694.1602.204
|
||||
| 600x400x70 | 2.5 / 2 | 3 | 28 | 694.1602.205
|
||||
| 800x600x90 | 3 / 2.5 | 3.5 | 69 | 694.1602.207
|
||||
| 1000x600x120 | 3.5 / 2.5 | 4 | 130 | 694.1602.208
|
||||
| 1500x1000x160 | 4 / 3.5 | 5 | 380 | 694.1602.210
|
| Product | Gauge |
| Part Type | Machine Center Dimensional |
| Taper / Standard | 400x250x50 |
| Parallelism (um) | 2 / 2.5 |
| Perpendicularity (um) | 2.5 |
| Weight (kg) | 8.5 |
• Manufactured per DIN875/876
• 2 measuring faces, diamond lapped, corrosion-free and acid resistant.
• Ground outer faces
• Sizes larger than 500x300mm have threaded inserts for eyebolts
• Include certificate
• Made in Germany
Standard squares are 00 accuracy class. Contact us for higher accuracy class 000 squares. Custom sizes also available.
Storage cases not included. Contact us for available types.
| Product | Gauge |
| Part Type | Machine Center Dimensional |
| Taper / Standard | 500x300x50 |
| Parallelism (um) | 2.5 / 2 |
| Perpendicularity (um) | 3 |
| Weight (kg) | 15 |
• Manufactured per DIN875/876
• 2 measuring faces, diamond lapped, corrosion-free and acid resistant.
• Ground outer faces
• Sizes larger than 500x300mm have threaded inserts for eyebolts
• Include certificate
• Made in Germany
Standard squares are 00 accuracy class. Contact us for higher accuracy class 000 squares. Custom sizes also available.
Storage cases not included. Contact us for available types.
