Product Information :

Name :
Special Gage
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. KOGA GAGE
Brand :
KOGA GAGE
Model :
รับออกแบบ plug gauge ตาม drawing ลูกค้า +/- 0.002 mm
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :

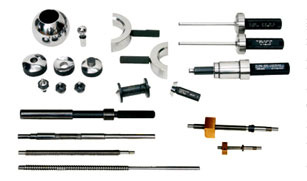

รับออกแบบ plug gauge ตาม drawing ลูกค้า +/- 0.002 mm e design, manufacture thread gages with any standards (ISO, KS, ANSI, JIS, DIN, BS) other than KS Standard Limit Thread Gage to meet customer needs and international standards. We design, manufacture according to order specifications based on our tradition and experience on screw gage with special screw thread and functions such as ACME screw, square screw, precision lead screw, and screw thread gage for measuring concentricity (axle). Trapezoid Screw Thread Gage.. Parallel Pipe Thread gage.. Taper Pipe Thread Gage.. American Standard Taper Pipe Thread Gage.. Unified Screw Thread.. Meter Thread Gage.. Adjustable thread ring gage

Product Detail :

Home > PRODUCT > Special gage






VALVE SEAT CONTACT GAGE..



Sphere Contact Rate Gage..



Chamfer Testing GAGE..



Centricity Gage..



Screw Centricity Gage..



Cylinder Contact Gage..

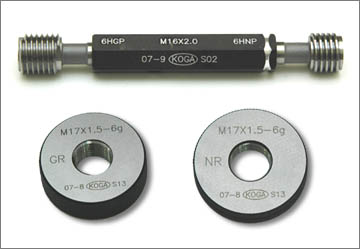

Meter Thread Gage

ISO Grade

1.2.3 Grade


(1)
Outline


    Limit Gage for Screw is set as the same grade as standards of screws
       and tested by 2 limit methods as passing side and stop side.
    The screw is passed if pass side gage passes
       through without difficulty and stop side gage stops within 2 turns.
    Manages by checking passing or stopping limit of screw.
     Meter Screw Gage is broadly divided into
      ISO Grade Gage and 1.2.3 Grade Gage.

(2)
Differences between ISO Grade and 1.2.3 Grade




ISO Grade

1.2.3 Grade
Process Part on Stop side
No distinction between testing, processing on stop side

Distinguished between testing, processing

Stop length on Stop side
Does not fit more than 2 turns

Does not fit more than 2 turns

Fit Testing Gage
Setting testing gage passes through
Use by sensing since Fit testing gage is 1 unit
 Wear Testing Gage
Wear testing plug gage is present on pass, stop side gage
On wear testing plug is present for pass side ring gage

(3)
 Comparison between ISO Grade and 1.2.3 Grade



Grades
Precision Grade
Normal Grade
Rough Grade

Remarks

Male
ISO Grade
4h
6g(6h)
8g
Grade applied up to M1.4 name within ( )
1.2.3 Grade
1 Grade
2 Grade
3 Grade

Female

ISO Grade

5h
6h(5h)
7h
1.2.3 Grade
1 Grade
Grade
Grade

  Names applied on normal screw, male screw 8g Grade and 3-Grade are M5 ~ M68
  Names applied on thin screw, male screw 8g Grade and 3-Grade are M8X1.0 ~ M150
   Name applied on normal screw, male screw 7H Grade and 3-Grade are M3 ~ M68
  Name applied on thin screw, male screw 7H Grade and 3-Grade are M4X0.5 ~ M150X2

(4)
Expression Method

  ▣ 1, 2, 3 Grade Grading Method

Product: M10P1.5-II Gage M10P1.5
          - GPⅡ, IPⅡ
          - GPⅡ, WPⅡ




Trapezoid Screw Thread Gage..



Parallel Pipe Thread gage..



Taper Pipe Thread Gage..



American Standard Taper Pipe Thread Gage..



Unified Screw Thread..



Meter Thread Gage..



Adjustable thread ring gage..



















































      Master Gage is a gage used for setting
   standard \measurement such as setting measurements of
   comparison measuring instruments.








Name(mm)
Nominal size D
tolerance(㎛) Circularity,cylindricity(㎛)

 above include
above1 3 ±1.0 0.6
3 6 ±1.2 0.8
6 10
10 18 ±1.5 1.0
18 30 ±2.0 1.2
30 50
50 80 ±2.5 1.5
80 120 ±3.0 2.0
120 180 ±4.0 2.5
180 250 ±5.0 3.5
250 315 ±6.0 4.0
315 400 ±9.0 6.5


- Please inform the followings when making orders on Master Gage.

   1. Types of Gage (Master Ring, Master Plug)
   2.
Naming (Ø30 etc)
   3.
Special Dimensions (Shape, display, gage tolerance)
