Product Information :

Name :
Manual or power operated expanding mandrels - Adapter flanges
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. SMW AUTOBLOK
Brand :
SMW-AUTOBLOK
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

Manual or power operated expanding mandrels - Adapter flanges




EM-A



Hand or power operated expanding mandrels Ø 14,7- 129,7 mm

  • sizes 1 - 11
  • large expansibility 1-2 mm depending on size
  • flange mounting
  • very rigid design


Technical Data

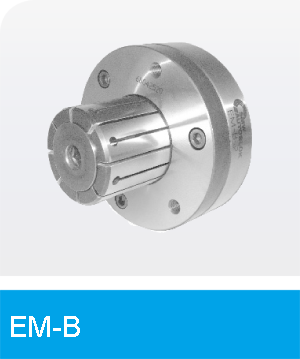

EM-B



Hand or power operated expanding mandrels Ø 16,0 - 129,5 mm

  • size 0 - 4
  • large expansibility 0,5 - 1,5 mm depending on size
  • flange mounting
  • very rigid design


Technical Data





EM-S



Power operated Segment sleeve mandrels Ø 18,0 - 80,0 mm

  • size 1 - 3
  • large expansibility 0,8 - 1,2 mm depending on size
  • flange mounting
  • clamping sleeve quick change


Technical Data





Adaptor flanges



ISO-A for expanding mandrels

  • mandrels EM-A and EM-Bhave cyndrical mounting
  • adaptor for DIN 55026/ ISO-A 702/1 spindle noses


Technische Daten






Special expanding mandrels


  • example: screw rotors, tubes or stators
  • on request
