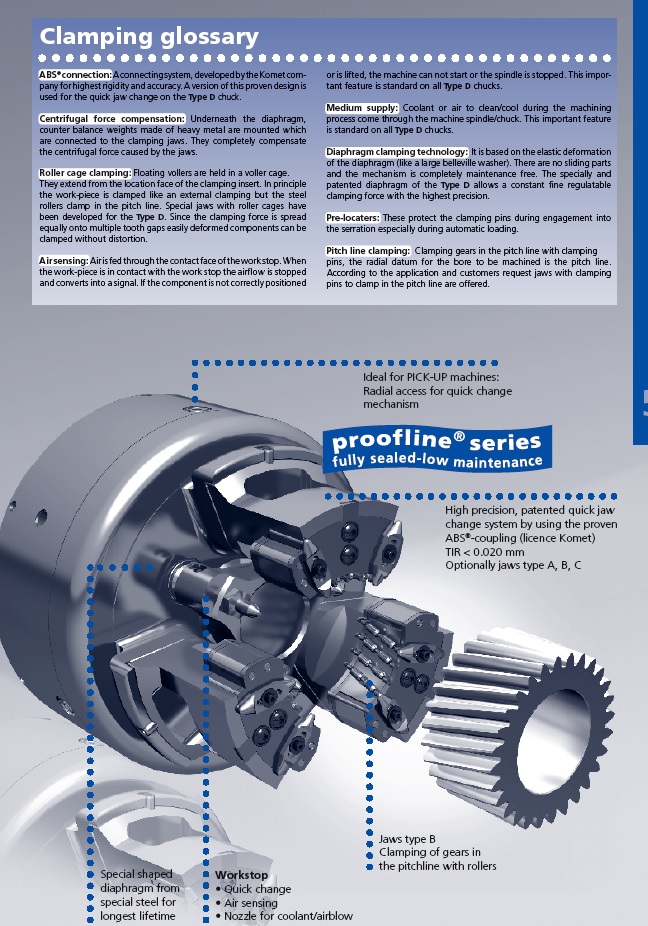

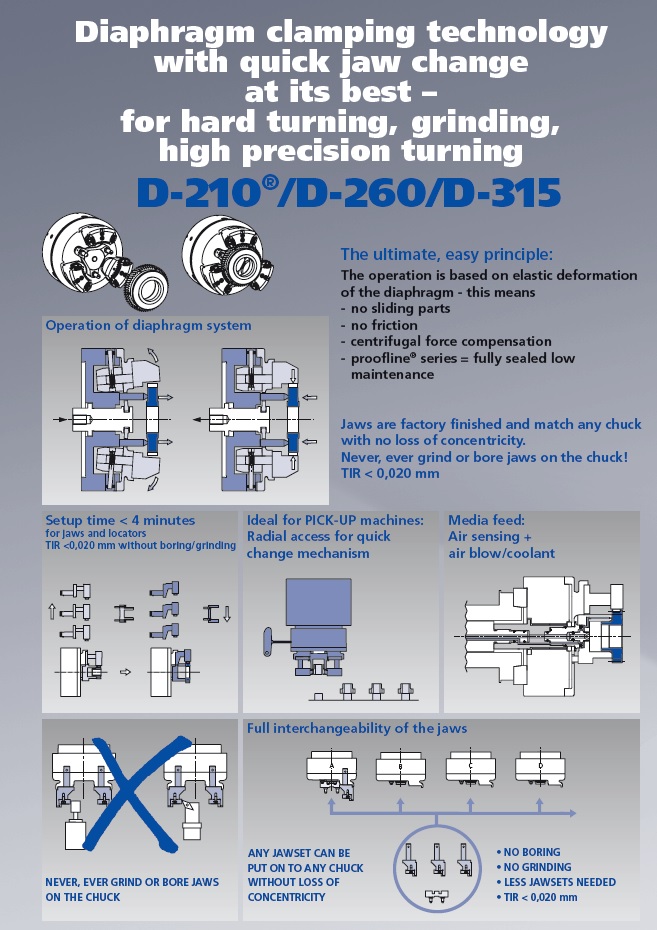

Diaphragm chucks




Type D



Diaphragm chuck - quick jaw change Ø 130 - 450 mm

  • Ø 210 - 315 mm
  • O.D. or pitch line clamping
  • centrifugal force compensation
  • proofline chucks = fully sealed - low maintenance


Technical Data






SIN-DFR



Closed center rotating hydraulic cylinder

  • special cylinder to actuate diaphragm chuck
  • uo to 70 bar
  • large/small piston area for opening/clamping
  • central bore for air/coolant (1 or 2 media)
  • stroke control via LPS


Technical Data

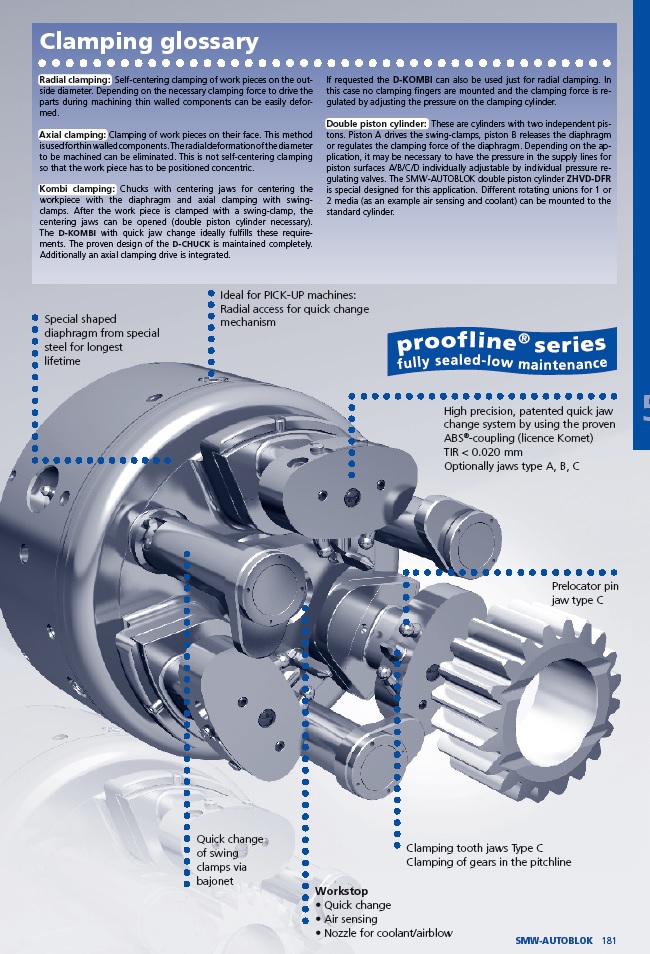

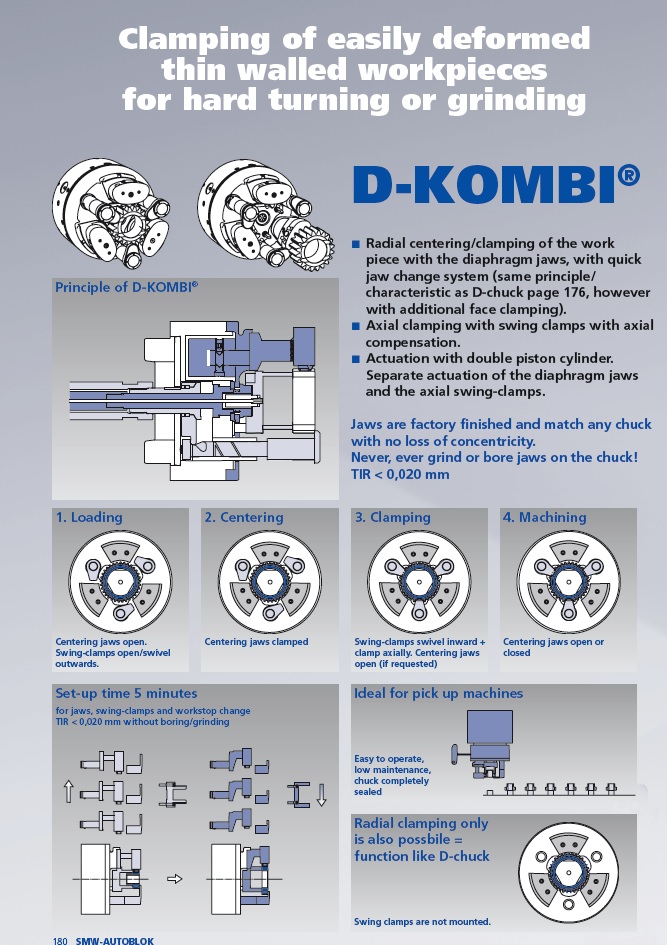

Type D-KOMBI



Diaphragm chuck with pull-down fingers / jaw/pull-down finger quick change

  • Ø 210 - 315 mm
  • O.D. or pitch line clamping
  • centrifugal force compensation
  • proofline chucks = fully sealed - low maintenance


Technical Data

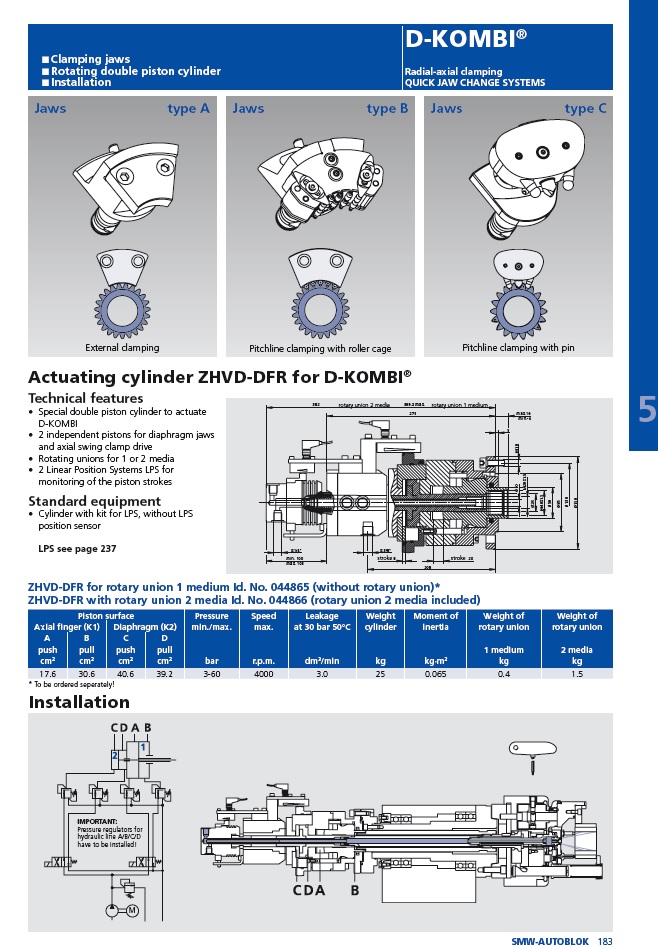

ZHVD-DFR



Double piston rotating hydraulic cylinder

  • specia cylinder to actuate diaphragm KOMBI chucks
  • up to 60 bar
  • 1 piston for actuating diaphragm / 1 piston for actuating axial clamping
  • central bore for air/coolant (1 or 2 media)
  • stroke control via LPS


Technical Data





RU-2-20



Rotary union for 2 media for double rotating cylinder ZHVD-DFR

  • universal for air, oil or coolant


Technical Data






D-Vario



Flexible Diaphragm Chuck for grinding operations of different workpieces

  • adjustable, modular jaw system for different workpieces
  • Key Lock System for quick positioning of the pitch of different workpieces
  • micrometer fine adjustment of the center line
  • workstop with air sensing/coolant noozles optional
  • jaws type A for O.D. clamping optional


Technische Daten
