Pull-down chucks - Compensating chucks - Indexing chucks - Shaft chucks - Column chucks

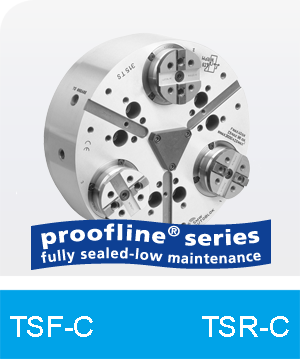

TSF-C (Floating jaws)

TSR-C (Rigid jaws)

Pull-down chucks Ø 170 - 650 mm - self centering

  • active pull-down
  • tongue & groove
  • 3 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data






TSF-C (Floating jaws)



Pull-down chucks Ø 170 - 315 mm - self centering

  • active pull-down
  • tongue & groove
  • 2 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data





TSF-RM (Pendelbacken)

TSR-RM (Starre Backen)

Pull-down chucks Ø 170 - 315 mm - quick jaw change

  • quick jaw change with pallets
  • active pull-down
  • tongue & groove palettes
  • 3 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data






TSF-CP (Floating jaws)

TSR-CP (Starre Backen)

Pull-down chucks Ø 170 - 650 mm - ausgleichend spannend

  • active pull-down
  • tongue & groove palettes
  • 3 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data





TSF-CP (Floating jaws)

TSR-CP (Rigid jaws)

Pull-down chucks Ø 170 - 315 mm

  • active pull-down
  • tongue & groove palettes
  • 2 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data






FRC-N (Starre Backen)



Lever chuck Ø 215 - 365 mm - compensating

  • large through hole
  • tongue & groove
  • center point adjustable
  • pull-down
  • proofline chucks = fully sealed - low maintenance


Technical Data





FRS (Starre Backen)



Lever chuck Ø 215 - 365 mm - self centering

  • large through hole
  • tongue & groove
  • pull-down
  • proofline chucks = fully sealed - low maintenance


Technical Data






TPT-C



High precision power chucks - 2+2 independend jaw movement Ø 210 - 400 mm

  • closed center
  • tongue & groove


Technical Data





TPT-C



High precision power chucks - 2+2 independend jaw movement Ø 500 - 800 mm

  • closed center
  • tongue & groove


Technical Data






TPT-RC



Präzisions-2+2Backenfutter Ø 1000 - 2000 mm

  • individual jaw regulation
  • closed center
  • tongue & groove


Technical Data





TX-C (Rigid jaws)



Pull-down chucks Ø 210 - 315 mm - self centering

  • active pull-down
  • tongue & groove
  • 3 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data






TX-RV



Pull-down chucks Ø 210 - 315 mm - self centering

  • active pull-down
  • quick jaw change (internal/external)
  • 3 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data






TEF-C



Pull-down chucks Ø 260 - 850 mm - self centering floating jaws/2+2+2 equalising

  • active pull-down
  • tongue & groove
  • 6 jaws (2+2+2)
  • proofline chucks = fully sealed - low maintenance


Technical Data





SJL-C (Tongue & Groove)

SJL-M (Metric Serration)

6-Jaw Equalising Chuck Ø 225 - 290 mm - 2+2+2 compensating and centrical clamping (adjustable)

  • 6-Jaw Chuck (adjustable to  6 jaw 2+2+2 or true 6 jaw  clamping)
  • Channels for air and/or coolant
  • Centrifugal Force Compensation
  • proofline chucks = fully sealed - low maintenance


Technical Data





IEP-D (Inch)

IEP-C (Tongue & groove)

High precision 6 jaw chucks Ø 1000 - 1600 mm - ausgleichend spannend

  • closed center
  • 6 jaws (2+2+2) all sizes
  • centrifugal force compensation
  • proofline chucks = fully sealed - low maintenance


Technical Data





IEP-D (Module 2)



Pull-down chucks Ø 500 - 800 mm - 2+2+2 equalising

  • closed center
  • cetrifugal force compensation
  • 6 jaws (2+2+2)
  • proofline chucks = fully sealed - low maintenance


Technical Data






AXN



Automatic indexing chuck Ø 210 - 850 mm

  • hydraulic clamping and indexing
  • divisions: 4x90°, 8x45°, 3x120°, 6x60° oder Sonder
  • 2 jaws
  • proofline chucks = fully sealed - low maintenance


Technical Data





W



Shaft chuck with face driver Ø 215 - 460 mm

  • compensating or self centering clamping
  • quick change for jaws and face driver
  • retractable jaws via retractable jaw carrier
  • complete machining of shafts in one setup
  • proofline chucks = fully sealed - low maintenance


Technical Data






GSA



Wellenspannfutter mit Stirnmitnehmer Ø 200 - 320 mm

  • compensating clamping
  • retractable jaws
  • complete machining of shafts in one setup
  • proofline chucks = fully sealed - low maintenance


Technical Data





ACS



Self centering clumn chucks Ø 130 - 254 mm

  • ACS-E: for external clamping
  • ACS-I: for internal clamping
  • 3 and 6 jaws (only ACS-E)


Technical Data
