Home > PRODUCT > Air micromerter & Electronic micromerter






Digital Air Micrometer..



Column-type Air, Electronic Micrometer..



Air Micrometer..










  Digital Air Micrometer




  (1) Major Features



  KG-18 is a Digital Air Micrometer designed and manufactured to be used conveniently from production site or measuring room.

KG-18 can measure changes in measurements and shapes by connecting air heads for inside/outside diameter.





(2) Specification



Item

Air Micrometer

Measuring Points

1 CHANNEL

Detection Method

Semi-conductor A/E Converter

Measurement Range

()

FULL SCALE
(
)

Validation Range

1 DIV
(
)

±99.9

12

0.1

±99.9

60

0.5

±999

120

1

Display Method

4 DIGIT 7 SEGMENT LED DISPLAY

Classification

LED Color Changes (+NG:Red,

       OK:Green(6-step automatic segmented display),

-NG:Yellow)

Linearity

±2%/FULL SCALE

Degree of Repetition

±2%/FULL SCALE

Polarity

Inside Diameter/Outside External Diameter

External Output

RS-232C Decision Signal

External measurements

224(W) X 240(D) X 85(H)

Power

AC 85~264V, 20W, 50~60Hz

AIR Input

4 ~ 6 BAR



(3)
Remarks

  1) Power is supplied at AC110V or AC220V through electrical code supplied at the back.
   (
Power variation allowances: ±10%, 주파수 Frequency: 50/60Hz)

2)
Power code plug is 3-pin type and the central round pin is for grounding.
   Please earth it for preventing electric shock and maintaining steady electrical potential.

3)
Remove PLUG after switching OFF power switch when it is necessary to separate
   power code from the main body.

4)
Please be cautious not to damage power code. If power code is damaged than
   there might be fire or electric shock caused by power leakage or short-circuits.
   Please do not use excess force or bend wires when connecting power code.

5)
Do not use solvent when washing the main body. Clean by diluting neutral detergent
   in water or use computer cleaner.

6)
Do not disassembly the CASE of main body. Disassembling the main body may cause
   short-circuiting or damaging internal wiring and damage caused by disassembling
   at user’s discretion will not entitle for A/S.

7)
Avoid from foreign objects (oil, water, metal fragments) entering inside the main body.
   Foreign objects become the cause of malfunctioning and accidents.

8)
Do not apply excessive impact on the main body.

9)
Please unplug when not using for a long period.

10)
If abnormalities are discovered on the main body, unplug the power
   code and request fro A/S.

11)
Do not apply excessive power on various switches on the front and back.
   It may damage switches or damage internal wirings.

Home > PRODUCT > Air micromerter & Electronic micromerter

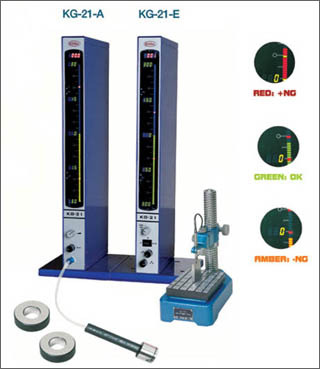

  Column-type Air, Electronic Micrometer




  (1) Main Feature


    KG-21 is a color-typed 3-color LED Electricity·Air Micrometer designed and manufactured to be used conveniently from production site or measuring room.

Electricity Micrometer can use 2 CHANNEL LVDT or HBT and can measure multi-channel by easily combining more than 2 units.


LED BAR GRAPH is displayed in 3 colors and can easily distinguish pass, failure with color.


. Measurements can be read directly by introducing DIGITAL Dimension Display Window.






(2)
 Specification



Item

Electrical
Micrometer

Air Micrometer

Measuring Points

A, B  2 CHANNEL

1 CHANNEL

Detection Method

LVDT,  HBT

Semiconductor A/E Converter

Measurement Range

(㎛)

FULL SCALE
(㎛)

1 DIV
(㎛)

FULL SCALE
(㎛)

1 DIV
(㎛)

12

0.1

12

0.1

24

0.2

24

0.2

60

0.5

60

0.5

600

5

120

1

1200

10

240

2

Display Method

LED BAR 120EA,   DIGITAL 4DIGIT

Classification

LED BAR Color Change (+NG:Red, OK:Green, -NG:Yellow)

Linearity

±1%/FULL SCALE

±2%/FULL SCALE

Degree of Repetition

±2%/FULL SCALE

±2%/FULL SCALE

Polarity

±A, ±B

Inside Diameter/
Outside Diameter

Measuring Function

A, B, A+B

Basic Function

 Change 0-point location, set limit

External Output

RS-232C Decision Signal

External Dimensions

54(W) X 200(D) X 520(H)

Power

AC 85~264V, 30W, 50~60Hz

AIR  Input



3~8 BAR



(3)
Remarks

  1) Power is supplied at AC110V or AC220V through electrical code supplied at the back.
     (
Power change allowances :  ±10%,  Frequency : 50/60Hz)

2)
Power code plug is 3-pin type and the central round pin is for grounding.
   Please earth it for preventing electric shock and maintaining steady electrical potential.

3)
Remove PLUG after switching OFF power switch when it is necessary to separate
   power code from the main body. Do not apply excessive power to unplug.

4)
Please be cautious not to damage power code. If power code is damaged than
   there might be fire or electric shock caused by power leakage or short-circuits.
   Please do not use excess force or bend wires when connecting power code.

5)
Adjustments on Phase and SPAN of detector of Electricity Micrometer are adjusted and
   tested by KG-10-PA from Korea First Gage. Please enquire at Research Center of Korea
   First Gage when using different detector.

6)
The quality of KG-10-PA is consistent but there may be slight deviations per LOT thus
   adjust magnification by using ADJ KNOB at the back when replacing or calibrating detector.

7)
Do not use solvent when washing the main body.
   Clean by diluting neutral detergent in water or use computer cleaner.

8)
Do not disassembly the CASE of main body.
   Disassembling the main body may cause short-circuiting or damaging internal wiring
   and damage caused by disassembling at user’s discretion will not entitle for A/S.

9)
Avoid from foreign objects (oil, water, metal fragments) entering inside the main body.
   Foreign objects become the cause of malfunctioning and accidents.

10)
Do not apply excessive impacts on the main body.

11)
Please unplug when not using for a long period.

12)
If abnormalities are discovered on the main body, unplug the power code and
    request fro A/S.

13)
Do not apply excessive power on various switches on the front and back.
    It may damage switches or damage internal wirings.











Close

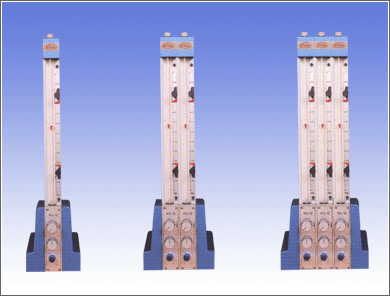

  Air Micrometer


   Displays the differences in changes in air quantity that flows through taper glass-pipe according to
  changes in gap between measuring head and measuring subjects as the height of Float.




KG-12 (Oil-type)


▣ Specification Table
  KG 001 ~ KG 020
Standard Magnification (Time) 1000 2000 3000 5000 10000
Effective Indication Range(㎛) 125 60 40 20 10
Indication Range(㎛) 200 100 60 40 20
Minimum Scale(㎛) 5 2 2 1 0.5
Indication Error(㎛) Less than2.5 Less than1.4 Less than1.4 Less than0.6 Less than0.3
Response Time (Second) 0.5 ~1.2
   ※ Related products: various measuring instrument masters
