Product Information :

Name :
SYIC
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. รับจัดหาสินค้าอุตสาหกรรมและอะไหล่ทุกชนิด
Brand :
SYIC
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
SYIC syic holder SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC SYIC

Product Detail :


  •

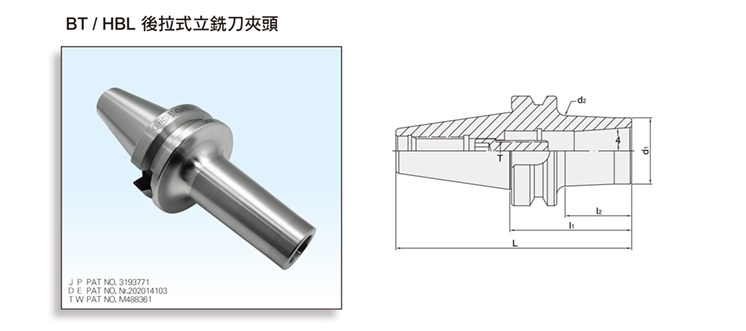

    • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
    • The balancing grade and revolution can be done according to customer request but the additional charge is needed.
    MODEL NO.TYPE - I1Ll2d1d2T
    18858H BT30 x HBL12 - 70 118.4 47 31.75 34.9 M10 x 1.5P
    18860H BT30 x HBL12 - 100 148.4 77 31.75 37.6 M10 x 1.5P
    18862H BT30 x HBL20 - 80 128.4 56 38.1 43.9 M12 x 1.75P
    18864H BT30 x HBL20 - 100 148.4 76 38.1 43.9 M12 x 1.75P
    18870H BT40 x HBL12 - 70 135.4 33 31.75 36.4 M10 x 1.5P
    18872H BT40 x HBL12 - 100 165.4 63 31.75 36.4 M10 x 1.5P
    18874H BT40 x HBL20 - 70 135.4 38 38.1 43.1 M12 x 1.75P
    18876H BT40 x HBL20 - 100 165.4 68 38.1 43.1 M12 x 1.75P
    18877H BT40 x HBL25 - 80 145.4 50 44.45 M16 x 2.0P M16 x 2.0P
    18877H-100 BT40 x HBL25 - 100 165.4 70 44.45 49.7 M16 x 2.0P
    18882H BT50 x HBL12 - 70 171.8 22 31.75 M10 x 1.5P M10 x 1.5P
    18884H BT50 x HBL12 - 100 201.8 52 31.75 35.4 M10 x 1.5P
    18886H BT50 x HBL20 - 70 171.8 22 38.1 39.1 M12 x 1.75P
    18888H BT50 x HBL20 - 100 201.8 52 38.1 41.8 M12 x 1.75P
    18890H BT50 x HBL25 - 70 171.8 22 44.45 45.5 M16 x 2.0P
    18890H-100 BT50 x HBL25 - 100 201.8 54 44.45 48.4 M16 x 2.0P
  • There is a special design for the slots of internal hole. It prevents the cutting tools from slipping and increases the clamping power.
  • The body of the tool holder is thick, so it has good clamping power. It adopts the needle bearing design to prevent the slipping. The operation is convenient and easy.
  • after locking the cutting tool (The tolerance of the cutting tool must be less than h6), it is more contacted with the flange while locking the clamping nut and tool holder. It can prevent the bearing cage from deformation easily. Also, rigidity and dust-proof function is improved.
  • Superior right angle: It provides perfect processing surface during the process on the machine table.
  • High stability of the precision and easy for combination. There won’t be a situation of vibration during the high speed processing or big cutting depth.
  • Good clamping power. The clamping power of MLD32 type is around 1000 N-m.
  • Run-out: Within 0.001~0.005mm.
  • Concentricity: 0.02mm.
  • The pre-balance can reach G6.3 8,000RPM, with an inspection report. The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

    • When using MLD sealed cap, the coolant fluid discharges from the cutting tool.It's good for heat dissipation and metal chips removal.

  • The design of coolant grooves improves the cooling and metal chips removal capability.
MODEL NO.TYPELl1Td1d2WEIGHT (KGS)
SYIC - 15900G BT30 x MLD12 - 65 113.4 65 M12 x 1.75P 12 42 1
SYIC - 15901G BT30 x MLD16 - 75 123.4 75 M12 x 1.75P 16 48 1.2
SYIC - 15902G BT30 x MLD20 - 80 128.4 80 M12 x 1.75P 20 56.5 1.9
SYIC - 15904G BT30 x MLD20 - 90 138.4 90 M16 x 2.0P 20 56.5 2
SYIC - 15908G BT30 x MLD25 - 90 138.4 90 M16 x 2.0P 25 60 1.8
SYIC - 15910G BT40 x MLD12 - 75 140.4 75 M12 x 1.75P 12 42 1.5
SYIC - 15910G-105 BT40 x MLD12 - 105 170.4 105 M12 x 1.75P 12 42 2
SYIC - 15910G-135 BT40 x MLD12 - 135 200.4 135 M12 x 1.75P 12 42 2.1
SYIC - 15911G BT40 x MLD16 - 75 140.4 75 M12 x 1.75P 16 48 1.7
SYIC - 15911G-105 BT40 x MLD16 - 105 170.4 105 M12 x 1.75P 16 48 2.3
SYIC - 15911G-135 BT40 x MLD16 - 135 200.4 135 M12 x 1.75P 16 48 2.4
SYIC - 15912G BT40 x MLD20 - 80 145.4 80 M16 x 2.0P 20 56.5 2.3
SYIC - 15914G BT40 x MLD20 - 100 165.4 100 M16 x 2.0P 20 56.5 2.5
SYIC - 15916G BT40 x MLD20 - 135 200.4 135 M16 x 2.0P 20 56.5 2.8
SYIC - 15918G BT40 x MLD25 - 85 150.4 85 M16 x 2.0P 20 60 2.2
SYIC - 15920G BT40 x MLD25 - 100 165.4 100 M16 x 2.0P 20 60 2.4
SYIC - 15922G BT40 x MLD32 - 95 160.4 95 M16 x 2.0P 32 71 2.7
SYIC - 15924G BT40 x MLD32 - 105 170.4 105 M16 x 2.0P 32 71 2.7
SYIC - 15926G BT40 x MLD32 - 135 200.4 135 M16 x 2.0P 32 71 3

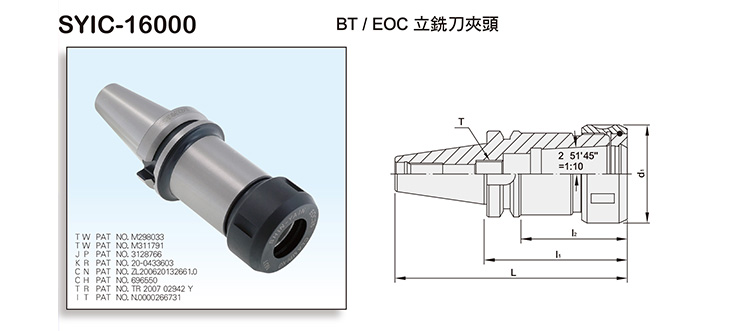

  • Each collet chuck has been locked with a nut, but not including a spanner and collet.
  • The draw bar thread can make pull studs locked precisely and easily, including 45°, 60°, and 90°.
  • Suitable for heavy-duty cutting.
  • Superior right angle: It provides perfect processing surface during the process on the machine table.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • While ordering, Power Good Nuts could be purchased separately for combination.



MODEL NO.TYPELl1l2d1TSIZE RANGEWEIGHT (KGS)
SYIC - 16001 BT30 x EOC25 - 70 118.4 70 48 60 M12 x 1.75P 3.0 ~ 25 1
SYIC - 16021 BT40 x EOC25 - 70 135.4 70 40.5 60 M16 x 2.0P 3.0 ~ 25 1.38
SYIC - 16023 BT40 x EOC25 - 100 165.4 100 70.5 60 M16 x 2.0P 3.0 ~ 25 1.74
SYIC - 16026 BT40 x EOC25 - 120 185.4 120 74.5 60 M16 x 2.0P 3.0 ~ 25 1.74
SYIC - 16027 BT40 x EOC32 - 90 155.4 90 63 72 M20 x 2.0P 4.0 ~ 32 2
SYIC - 16029 BT40 x EOC32 - 105 170.4 105 78 72 M20 x 2.0P 4.0 ~ 32 2.2
SYIC - 16031 BT40 x EOC32 - 120 185.4 120 93 72 M20 x 2.0P 4.0 ~ 32 2.45
SYIC - 16041 BT50 x EOC25 - 85 186.8 85 44.5 60 M16 x 2.0P 3.0 ~ 25 4.4
SYIC - 16043 BT50 x EOC25 - 100 201.8 100 59.5 60 M16 x 2.0P 3.0 ~ 25 4.8
SYIC - 16046 BT50 x EOC25 - 120 221.8 120 77 60 M16 x 2.0P 3.0 ~ 25 5.2
SYIC - 16047 BT50 x EOC32 - 90 191.8 90 44 72 M24 x 2.0P 4.0 ~ 32 4.6
SYIC - 16049 BT50 x EOC32 - 105 206.8 105 59 72 M24 x 2.0P 4.0 ~ 32 4.85
SYIC - 16051 BT50 x EOC32 - 120 221.8 120 74 72 M24 x 2.0P 4.0 ~ 32 5.35

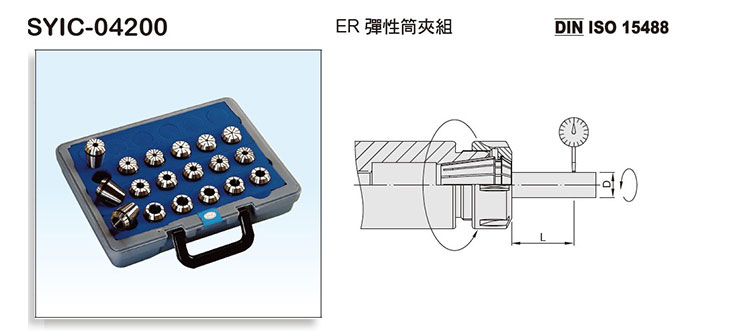

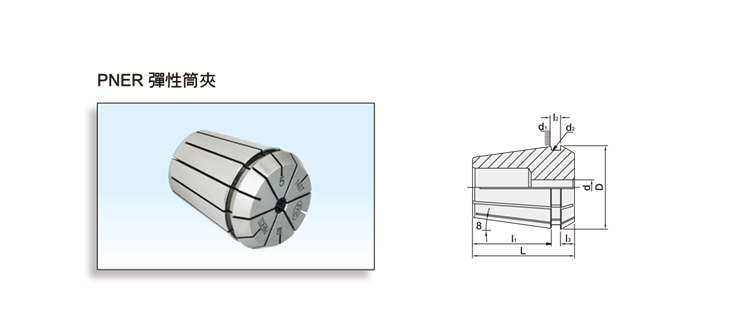

d1 TEST BAR DIAMETER MIN. MAX.LCONCENTRICITY
3 6 16 0.01
6 10 25 0.01
10 18 40 0.01
18 24 50 0.01
24 32 60 0.01

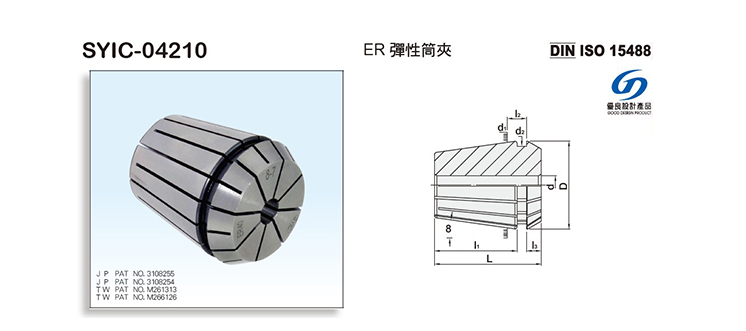

  • Every collet shipped out of the factory has been passed inspection.
  • Standard testing table is in accordance with the cutting length and precise requirements of various sizes of end mills.



  • Collet taper is 4.1751°, good concentricity and clamping capacity.
  • Suitable for heavy-duty cutting.
  • Particular square thread design enables good clamping capacity.
  • The price includes a nut, but without any spanner and collets.
  • While ordering, other Power Good Nuts could be purchased separately for combination.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1SIZE RANGEt1TWEIGHT (KGS)
SYIC - 16056 BT30 x TG75 - 70 118.4 47 50 3.0 ~ 16 M16 x 2.0P TW 1-1/2" - 12 1.1
SYIC - 16058 BT30 x TG75 - 100 148.4 77 50 3.0 ~ 16 M16 x 2.0P TW 1-1/2" - 12 1.15
SYIC - 16060 BT30 x TG100 - 100 148.4 78 60 3.0 ~ 25 - TW 1-7/8" - 12 1.2
SYIC - 16068 BT40 x TG100 - 70 135.4 43 60 3.0 ~ 25 M16 x 2.0P TW 1-7/8" - 12 1.2
SYIC - 16070 BT40 x TG100 - 100 165.4 73 60 3.0 ~ 25 M16 x 2.0P TW 1-7/8" - 12 1.9
SYIC - 16072 BT40 x TG100 - 120 185.4 93 60 3.0 ~ 25 M16 x 2.0P TW 1-7/8" - 12 2.4
SYIC - 16074 BT40 x TG150 - 105 170.4 78 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 2.7
SYIC - 16076 BT40 x TG150 - 120 185.4 93 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 2.9
SYIC - 16078 BT40 x TG150 - 135 200.4 108 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 3.2
SYIC - 16088 BT50 x TG100 - 85 186.8 44 60 3.0 ~ 25 M24 x 2.0P TW 1-7/8" - 12 3.4
SYIC - 16090 BT50 x TG100 - 100 201.8 57 60 3.0 ~ 25 M24 x 2.0P TW 1-7/8" - 12 4.4
SYIC - 16092 BT50 x TG100 - 120 221.8 77 60 3.0 ~ 25 M24 x 2.0P TW 1-7/8" - 12 5.1
SYIC - 16094 BT50 x TG150 - 90 191.8 50 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 5.7
SYIC - 16096 BT50 x TG150 - 105 206.8 64 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 6.1
SYIC - 16098 BT50 x TG150 - 120 221.8 79 82 4.0 ~ 38 M24 x 2.0P TW 2-5/8" - 12 6.5

SYIC-16100

  • Thread with precise grinding.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 16101 - 50 BT30 x ER16A - 50 98.4 27 28 25.1 M10 x 1.5P 1.0 ~ 10 0.45
SYIC - 16101 BT30 x ER16A - 70 118.4 40 28 28 M10 x 1.5P 1.0 ~ 10 0.55
SYIC - 16102 BT30 x ER16A - 60 108.4 35 28 28 M10 x 1.5P 1.0 ~ 10 0.6
SYIC - 16104 BT30 x ER16A - 100 148.4 70 28 28 M10 x 1.5P 1.0 ~ 10 0.7
SYIC - 16105 BT30 x ER16A - 120 168.4 93 28 28 M10 x 1.5P 1.0 ~ 10 0.78
SYIC - 16106 - 50 BT30 x ER20A - 50 98.4 28 34 - M12 x 1.75P 1.0 ~ 13 0.48
SYIC - 16106 BT30 x ER20A - 70 118.4 45 34 34 M12 x 1.75P 1.0 ~ 13 0.62
SYIC - 16107 BT30 x ER20A - 135 183.4 110 34 34 M12 x 1.75P 1.0 ~ 13 1.1
SYIC - 16109 BT30 x ER25 - 70 118.4 46 42 42 M16 x 2.0P 1.0 ~ 16 0.7
SYIC - 16111 BT30 x ER25 - 135 183.4 111 42 42 M16 x 2.0P 1.0 ~ 16 1.45
SYIC - 16113 BT30 x ER32 - 70 118.4 48 50 45 M16 x 2.0P 2.0 ~ 20 0.7
SYIC - 16114 BT30 x ER32 - 100 148.4 78 50 45 M16 x 2.0P 2.0 ~ 20 1
SYIC - 16115 BT30 x ER40 - 80 128.4 58 63 53 M16 x 2.0P 3.0 ~ 26 1.1
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

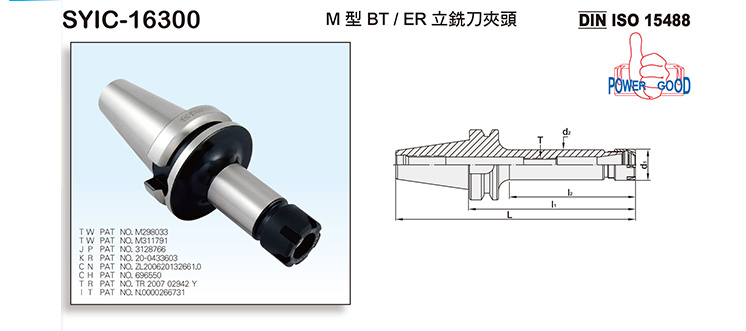

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 16302 BT30 x ER11M - 70 118.4 40 16 15 M6 x 1.0P 1.0 ~ 7 0.5
SYIC - 16304 BT30 x ER11M - 100 148.4 70 16 15 M6 x 1.0P 1.0 ~ 7 0.6
SYIC - 16306 BT30 x ER11M - 120 168.4 88 16 15 M6 x 1.0P 1.0 ~ 7 0.7
SYIC - 16308 BT30 x ER16M - 70 118.4 43 22 21 M10 x 1.5P 1.0 ~ 10 0.55
SYIC - 16310 BT30 x ER16M - 100 148.4 68 22 21 M10 x 1.5P 1.0 ~ 10 0.56
SYIC - 16312 BT30 x ER16M - 120 168.4 88 22 21 M10 x 1.5P 1.0 ~ 10 0.75
SYIC - 16313 BT30 x ER20M - 70 118.4 45 28 27 M12 x 1.75P 1.0 ~ 13 0.65
SYIC - 16314 BT30 x ER20M - 100 148.4 71 28 27 M12 x 1.75P 1.0 ~ 13 0.7
SYIC - 16316 BT30 x ER20M - 120 168.4 91 28 27 M12 x 1.75P 1.0 ~ 13 0.8
SYIC - 16318 BT30 x ER20M - 150 198.4 121 28 27 M12 x 1.75P 1.0 ~ 13 1
SYIC - 16321 BT40 x ER11M - 70 135.4 33 16 15 M6 x 1.0P 1.0 ~ 7 1.1
SYIC - 16322 BT40 x ER11M - 100 165.4 63 16 15 M6 x 1.0P 1.0 ~ 7 1.1
SYIC - 16323 BT40 x ER11M - 125 190.4 88 16 15 M6 x 1.0P 1.0 ~ 7 1.12
SYIC - 16324 BT40 x ER11M - 150 215.4 113 16 15 M6 x 1.0P 1.0 ~ 7 1.2
SYIC - 16325 BT40 x ER16M - 70 135.4 38 22 21 M10 x 1.5P 1.0 ~ 10 1.1
SYIC - 16326 BT40 x ER16M - 100 165.4 63 22 21 M10 x 1.5P 1.0 ~ 10 1.16
SYIC - 16327 BT40 x ER16M - 125 190.4 88 22 21 M10 x 1.5P 1.0 ~ 10 1.2
SYIC - 16328 BT40 x ER16M - 150 215.4 113 22 21 M10 x 1.5P 1.0 ~ 10 1.3
SYIC - 16329 BT40 x ER20M - 70 135.4 38 28 27 M12 x 1.75P 1.0 ~ 13 1.2
SYIC - 16330 BT40 x ER20M - 100 165.4 63 28 27 M12 x 1.75P 1.0 ~ 13 1.25
SYIC - 16331 BT40 x ER20M - 125 190.4 88 28 27 M12 x 1.75P 1.0 ~ 13 1.3
SYIC - 16332 BT40 x ER20M - 150 215.4 113 28 27 M12 x 1.75P 1.0 ~ 13 1.45

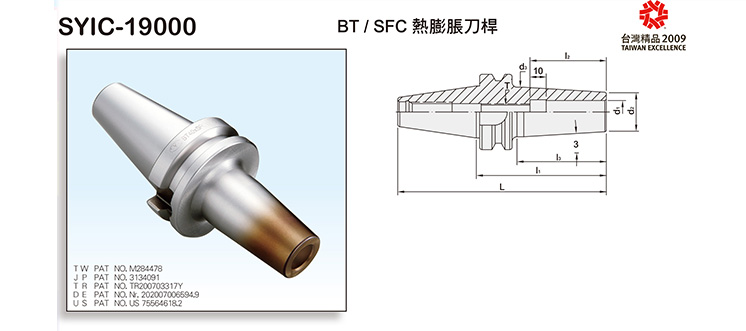

    • High rigidity.
    • T.I.R.: within 5 μ.
    • Slim design.
    • Easy operation.
    • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
    • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
    • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.

    INCHES

    MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
    SYIC - 19002 BT30 x SFC3/16" - 3.15" 5.06 0.79 1.91 0.43 0.63 M6 x 1.0P 18 0.43
    SYIC - 19004 BT30 x SFC1/4" - 3.15" 5.06 1.42 1.81 0.71 1.06 M5 x 0.8P 18 0.53
    SYIC - 19006 BT30 x SFC5/16" - 3.15" 5.06 1.42 1.85 0.79 1.06 M6 x 1.0P 35 0.55
    SYIC - 19008 BT30 x SFC3/8" - 3.15" 5.06 1.53 1.83 0.94 1.26 M8 x 1.25P 65 0.62
    SYIC - 19010 BT30 x SFC1/2" - 3.15" 5.06 1.85 1.87 1.1 1.34 M10 x 1.5P 110 0.67
    SYIC - 19011 BT30 x SFC5/8" - 3.15" 5.06 1.97 1.85 1.06 1.34 M12 x 1.75P 200 0.61
    SYIC - 19012 BT30 x SFC3/4" - 3.54" 5.45 1.97 2.56 1.26 1.34 M16 x 2.0P 320 0.7
    SYIC - 19014 BT30 x SFC1" - 3.94" 5.85 2.04 3.05 1.42 1.65 M20 x 2.0P 500 0.86
    SYIC - 19020 BT40 x SFC3/16" - 3.54" 6.12 0.79 2.11 0.43 0.63 M6 x 1.0P 18 1.02
    SYIC - 19022 BT40 x SFC1/4" - 3.54" 6.12 1.42 2.04 0.71 1.03 M5 x 0.8P 18 1.1
    SYIC - 19024 BT40 x SFC5/16" - 3.15" 5.72 1.42 2.11 0.79 1.02 M6 x 1.0P 35 1.15
    SYIC - 19026 BT40 x SFC3/8" - 3.54" 6.12 1.65 2.11 0.94 1.16 M8 x 1.25P 65 1.22
    SYIC - 19028 BT40 x SFC1/2" - 3.54" 6.12 1.85 2.28 1.1 1.34 M10 x 1.5P 110 1.28
    SYIC - 19029 BT40 x SFC5/8" - 3.54" 6.12 1.97 2.06 1.06 1.34 M12 x 1.75P 200 1.22
    SYIC - 19030 BT40 x SFC3/4" - 3.54" 6.12 1.97 2.28 1.26 1.34 M16 x 2.0P 320 1.25
    SYIC - 19032 BT40 x SFC1" - 3.94" 6.51 2.28 2.83 1.81 2.09 M20 x 2.0P 500 1.78
    SYIC - 19036 BT50 x SFC3/16" - 3.54" 7.55 0.79 1.67 0.43 0.59 M6 x 1.0P 18 3.58
    SYIC - 19038 BT50 x SFC1/4" - 3.54" 7.55 1.42 2.04 0.71 1.03 M5 x 0.8P 18 3.64
    SYIC - 19040 BT50 x SFC5/16" - 3.54" 7.55 1.42 1.62 0.79 1.02 M6 x 1.0P 35 3.65
    SYIC - 19042 BT50 x SFC3/8" - 3.54" 7.55 1.65 1.67 0.94 1.12 M8 x 1.25P 65 3.75
    SYIC - 19044 BT50 x SFC1/2" - 3.54" 7.55 1.85 1.62 1.1 1.34 M10 x 1.5P 110 3.78
    SYIC - 19045 BT50 x SFC5/8" - 3.54" 7.55 1.97 1.6 1.06 1.34 M12 x 1.75P 200 3.75
    SYIC - 19046 BT50 x SFC3/4" - 3.54" 7.55 1.97 1.85 1.26 1.34 M16 x 2.0P 320 3.76
    SYIC - 19048 BT50 x SFC1" - 3.94" 7.94 2.28 2.24 1.73 1.93 M20 x 2.0P 500 4.11
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.





MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 19102 BT30 x SFC4 - 80 128.4 20 48 10 15 M6 x 1.0P 18 0.42
SYIC - 19104 BT30 x SFC5 - 80 128.4 20 53 16 19 M5 x 0.8P 18 0.54
SYIC - 19106 BT30 x SFC6 - 80 128.4 36 53 21 26 M6 x 1.0P 18 0.64
SYIC - 19108 BT30 x SFC8 - 80 128.4 36 53 21 26 M8 x 1.25P 35 0.56
SYIC - 19110 BT30 x SFC10 - 80 128.4 42 53 24 29 M10 x 1.5P 65 0.66
SYIC - 19112 BT30 x SFC12 - 80 128.4 47 53 24 29 M10 x 1.5P 110 0.66
SYIC - 19114 BT30 x SFC14 - 80 128.4 47 46 24 32 M12 x 1.75P 150 0.58
SYIC - 19116 BT30 x SFC16 - 80 128.4 50 55 27 32 M12 x 1.75P 200 0.60
SYIC - 19118 BT30 x SFC18 - 90 138.4 50 66 33 38 M16 x 2.0P 250 0.80
SYIC - 19120 BT30 x SFC20 - 90 138.4 52 66 33 38 M20 x 2.0P 320 0.76
SYIC - 19122 BT30 x SFC25 - 100 148.4 58 78 44 49 M6 x 1.0P 500 1.17
SYIC - 19132 BT40 x SFC4 - 90 155.4 20 53 10 15.6 M6 x 1.0P 18 1.01
SYIC - 19134 BT40 x SFC5 - 90 155.4 20 58 16 21 M5 x 0.8P 18 1.07
SYIC - 19136 BT40 x SFC6 - 90 155.4 36 58 21 26 M6 x 1.0P 18 1.15
SYIC - 19138 BT40 x SFC8 - 90 155.4 36 58 21 26 M8 x 1.25P 35 1.15
SYIC - 19140 BT40 x SFC10 - 90 155.4 42 58 24 29 M10 x 1.5P 65 1.20
SYIC - 19142 BT40 x SFC12 - 90 155.4 47 58 24 29 M10 x 1.5P 110 1.19
SYIC - 19144 BT40 x SFC14 - 90 155.4 47 58 27 32 M12 x 1.75P 150 1.24
SYIC - 19146 BT40 x SFC16 - 90 155.4 50 58 27 32 M12 x 1.75P 200 1.21
SYIC - 19148 BT40 x SFC18 - 100 165.4 50 68 33 38 M16 x 2.0P 250 1.42
SYIC - 19186 BT40 x SFC19 - 90 155.4 60 58 33 38 M16 x 2.0P 250 1.40
SYIC - 19150 BT40 x SFC20 - 100 165.4 52 68 33 38 M20 x 2.0P 320 1.38
SYIC - 19188 BT40 x SFC24 - 90 155.4 72 61 44 49 M20 x 2.0P 500 1.36
SYIC - 19152 BT40 x SFC25 - 100 165.4 58 71 44 49 M20 x 2.0P 500 1.66
SYIC - 19154 BT40 x SFC32 - 100 165.4 58 71 44 49 M20 x 2.0P 550 1.52
SYIC - 19162 BT50 x SFC4 - 100 201.8 20 52 10 15.5 M6 x 1.0P 18 3.86
SYIC - 19164 BT50 x SFC5 - 100 201.8 20 57 16 21 M5 x 0.8P 18 3.86
SYIC - 19166 BT50 x SFC6 - 100 201.8 36 57 21 26 M6 x 1.0P 18 3.92
SYIC - 19168 BT50 x SFC8 - 100 201.8 36 52 21 26 M6 x 1.0P 35 3.92
SYIC - 19170 BT50 x SFC10 - 100 201.8 42 58 24 29 M8 x 1.25P 65 3.90
SYIC - 19172 BT50 x SFC12 - 100 201.8 47 52 24 29 M10 x 1.5P 110 3.94
SYIC - 19174 BT50 x SFC14 - 100 201.8 47 57 27 32 M10 x 1.5P 150 4.02
SYIC - 19176 BT50 x SFC16 - 100 201.8 50 52 27 32 M12 x 1.75P 200 3.96
SYIC - 19178 BT50 x SFC18 - 110 211.8 50 62 33 38 M12 x 1.75P 250 4.18
SYIC - 19180 BT50 x SFC20 - 110 211.8 52 67 33 38 M16 x 2.0P 320 4.14
SYIC - 19182 BT50 x SFC25 - 110 211.8 58 67 44 49 M20 x 2.0P 500 4.46
SYIC - 19184 BT50 x SFC32 - 110 211.8 58 67 44 49 M20 x 2.0P 550 4.30
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.
MODEL NO.TYPE d1 - I1LI2I3d2d3TTORQUE N.m minWEIGHT (KGS)

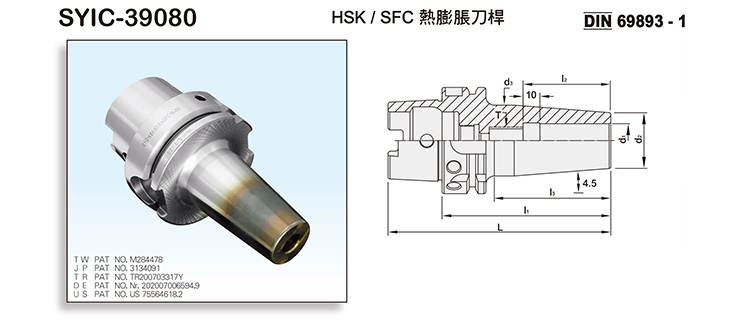

SYIC - 39082 HSK40A x SFC3 - 80 100 18 55 9 17.7 - 18 0.25
SYIC - 39084 HSK40A x SFC4 - 80 100 20 55 10 18.7 - 18 0.26
SYIC - 39086 HSK40A x SFC5 - 80 100 20 55 16 22 - 18 0.33
SYIC - 39088 HSK40A x SFC6 - 80 100 36 57 21 27 M5 x 0.8P 18 0.41
SYIC - 39090 HSK40A x SFC8 - 80 100 36 57 21 27 M6 x 1.0P 35 0.40
SYIC - 39092 HSK40A x SFC10 - 85 105 42 64 24 32 M8 x 1.25P 65 0.49
SYIC - 39094 HSK40A x SFC12 - 90 110 47 69 24 32 M10 x 1.5P 110 0.50
SYIC - 39096 HSK40A x SFC14 - 90 110 47 69 27 34 M10 x 1.5P 150 0.56
SYIC - 39098 HSK40A x SFC16 - 90 110 47 69 27 34 M12 x 1.75P 200 0.53
SYIC - 39100 HSK50A x SFC3 - 80 105 18 49 9 16.7 - 18 0.43
SYIC - 39102 HSK50A x SFC4 - 80 105 20 49 10 17.7 - 18 0.44
SYIC - 39104 HSK50A x SFC5 - 80 105 20 49 16 22 - 18 0.50
SYIC - 39106 HSK50A x SFC6 - 80 105 36 49 21 27 M5 x 0.8P 18 0.58
SYIC - 39108 HSK50A x SFC8 - 80 105 36 49 21 27 M6 x 1.0P 35 0.57
SYIC - 39110 HSK50A x SFC10 - 85 110 42 54 24 32 M8 x 1.25P 65 0.65
SYIC - 39112 HSK50A x SFC12 - 90 115 47 59 24 32 M10 x 1.5P 110 0.66
SYIC - 39114 HSK50A x SFC14 - 90 115 47 59 24 32 M10 x 1.5P 150 0.65
SYIC - 39116 HSK50A x SFC16 - 95 120 50 64 27 34 M12 x 1.75P 200 0.72
SYIC - 39118 HSK50A x SFC18 - 95 120 52 67 33 42 M12 x 1.75P 250 0.89
SYIC - 39120 HSK50A x SFC20 - 100 125 52 73 33 42 M16 x 2.0P 320 0.90
SYIC - 39122 HSK50A x SFC25 - 115 140 47 88 44 53 M20 x 2.0P 550 1.39


MODEL NO.TYPELl1l2l3Dd1d2SIZE RANGEWEIGHT (KGS)
SYIC-04216-PN PNER16 27.5 20.8 3.4 4 16.8 16 13.8 3.0 - 10 0.03
SYIC-04220-PN PNER20 31.5 23.9 3.4 4.8 20.8 20 17.4 3.0 - 13 0.04
SYIC-04225-PN PNER25 34 25.9 3.6 5 25.8 25 21.9 3.0 - 16 0.06
SYIC-04232-PN PNER32 40 30.9 4.1 5.5 32.7 32 29.2 3.0 - 20 0.1
SYIC-04240-PN PNER40 46 34.5 4.5 7 40.85 40 36.2 6.0 - 26 0.25



METRIC

PNER 16PNER 20PNER 25PNER 32PNER 40
MODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZE
04216-PN - 03 3 04220-PN - 03 3 04225-PN - 03 3 04232-PN - 03 3
04216-PN - 04 4 04220-PN - 04 4 04225-PN - 04 4 04232-PN - 04 4
04216-PN - 05 5 04220-PN - 05 5 04225-PN - 05 5 04232-PN - 05 5
04216-PN - 06 6 04220-PN - 06 6 04225-PN - 06 6 04232-PN - 06 6 04240-PN - 06 6
04216-PN - 07 7 04220-PN - 07 7 04225-PN - 07 7 04232-PN - 07 7 04240-PN - 07 7
04216-PN - 08 8 04220-PN - 08 8 04225-PN - 08 8 04232-PN - 08 8 04240-PN - 08 8
04216-PN - 09 9 04220-PN - 09 9 04225-PN - 09 9 04232-PN - 09 9 04240-PN - 09 9
04216-PN - 10 10 04220-PN - 10 10 04225-PN - 10 10 04232-PN - 10 10 04240-PN - 10 10
    04220-PN - 11 11 04225-PN - 11 11 04232-PN - 11 11 04240-PN - 11 11
    04220-PN - 12 12 04225-PN - 12 12 04232-PN - 12 12 04240-PN - 12 12
    04220-PN - 13 13 04225-PN - 13 13 04232-PN - 13 13 04240-PN - 13 13
        04225-PN - 14 14 04232-PN - 14 14 04240-PN - 14 14
        04225-PN - 15 15 04232-PN - 15 15 04240-PN - 15 15
        04225-PN - 16 16 04232-PN - 16 16 04240-PN - 16 16
            04232-PN - 17 17 04240-PN - 17 17
            04232-PN - 18 18 04240-PN - 18 18
            04232-PN - 19 19 04240-PN - 19 19
            04232-PN - 20 20 04240-PN - 20 20
                04240-PN - 21 21
                04240-PN - 22 22
                04240-PN - 23 23
                04240-PN - 24 24
                04240-PN - 25 25
                04240-PN - 26 26



INCHES

PNER 16PNER 20PNER 25PNER 32PNER 40
MODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZEMODEL NO.SIZE
04216-PN-1/8 1/8 04220-PN-1/8 1/8 04225-PN-1/8 1/8 04232-PN-1/8 1/8
04216-PN-5/32 5/32 04220-PN-5/32 5/32 04225-PN-5/32 5/32 04232-PN-5/32 5/32
04216-PN-3/16 3/16 04220-PN-3/16 3/16 04225-PN-3/16 3/16 04232-PN-3/16 3/16
04216-PN-7/32 7/32 04220-PN-7/32 7/32 04225-PN-7/32 7/32 04232-PN-7/32 7/32
04216-PN-1/4 1/4 04220-PN-1/4 1/4 04225-PN-1/4 1/4 04232-PN-1/4 1/4 04240-PN-1/4 1/4
04216-PN-9/32 9/32 04220-PN-9/32 9/32 04225-PN-9/32 9/32 04232-PN-9/32 9/32 04240-PN-9/32 9/32
04216-PN-5/16 5/16 04220-PN-5/16 5/16 04225-PN-5/16 5/16 04232-PN-5/16 5/16 04240-PN-5/16 5/16
04216-PN-11/32 11/32 04220-PN-11/32 11/32 04225-PN-11/32 11/32 04232-PN-11/32 11/32 04240-PN-11/32 11/32
04216-PN-3/8 3/8 04220-PN-3/8 3/8 04225-PN-3/8 3/8 04232-PN-3/8 3/8 04240-PN-3/8 3/8
04216-PN-13/32 13/32 04220-PN-13/32 13/32 04225-PN-13/32 13/32 04232-PN-13/32 13/32 04240-PN-13/32 13/32
  04220-PN-7/16 7/16 04225-PN-7/16 7/16 04232-PN-7/16 7/16 04240-PN-7/16 7/16
  04220-PN-15/32 15/32 04225-PN-15/32 15/32 04232-PN-15/32 15/32 04240-PN-15/32 15/32
  04220-PN-1/2 1/2 04225-PN-1/2 1/2 04232-PN-1/2 1/2 04240-PN-1/2 1/2
    04225-PN-17/32 17/32 04232-PN-17/32 17/32 04240-PN-17/32 17/32
    04225-PN-9/16 9/16 04232-PN-9/16 9/16 04240-PN-9/16 9/16
    04225-PN-19/32 19/32 04232-PN-19/32 19/32 04240-PN-19/32 19/32
    04225-PN-5/8 5/8 04232-PN-5/8 5/8 04240-PN-5/8 5/8
    04225-PN-3/4 3/4 04232-PN-21/32 21/32 04240-PN-21/32 21/32
      04232-PN-11/16 11/16 04240-PN-11/16 11/16
      04232-PN-23/32 23/32 04240-PN-23/32 23/32
      04232-PN-3/4 3/4 04240-PN-3/4 3/4
        04240-PN-25/32 25/32
        04240-PN-13/16 13/16
        04240-PN-27/32 27/32
        04240-PN-7/8 7/8
        04240-PN-29/32 29/32
        04240-PN-15/16 15/16
        04240-PN-31/32 31/32
        04240-PN-1 1

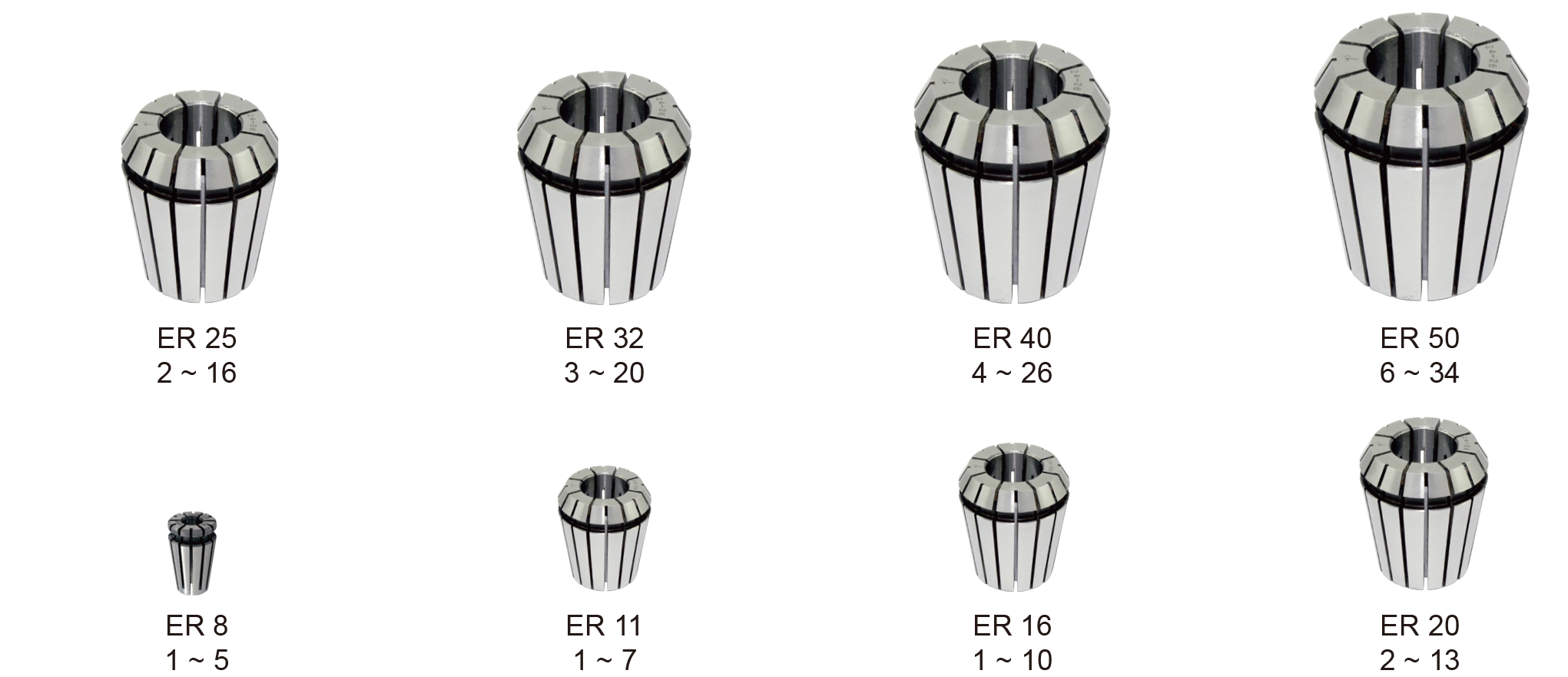

  • Substitution for point 5 types is acceptable; price needs to be quoted additionally.
  • ER8, ER11 and ER50 collets are packed with wooden boxes; ER16, ER20, ER25 , ER32 and ER40 with plastic boxes.
  • Collets of special sizes could be ordered by request.



L
mm
D
mm
CONCEN-
TRICITY
ER- UP
CLASS
ER-A
CLASS
6 1.0 - 1.4 0.015 0.005 0.01
10 1.5 - 2.9 0.015 0.005 0.01
16 3.0 - 5.9 0.015 0.005 0.01
25 6.0 - 9.9 0.015 0.005 0.01
40 10.0 - 17.9 0.02 0.005 0.01
50 18.0 - 26.9 0.02 0.005 0.01
60 27.0 - 34.0 0.02 0.005 0.01



  1. UP = Ultra Precision
  2. ER-UP collets must be used with HSP Claming Nut.
  3. The shank's concentricity must be less than h6.



MODEL NO.PCS / SETCOLLET KITWEIGHT (KGS)
SYIC - 04200 ER8 x 9 5, 4.5, 4, 3.5, 3, 2.5, 2, 1.5, 1 0.15
SYIC - 04201 ER11 x 13 7, 6.5, 6, 5.5, 5, 4.5, 4, 3.5, 3, 2.5, 2, 1.5, 1 0.23
SYIC - 04202 ER16 x 10 10, 9, 8, 7, 6, 5, 4, 3, 2, 1 0.4
SYIC - 04203 ER20 x 12 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2 0.6
SYIC - 04204 ER25 x 15 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2 1.7
SYIC - 04205 ER32 x 18 20, 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3 2.6
SYIC - 04206 ER40 x 23 26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14, 13, 12, 11,10, 9, 8, 7, 6, 5, 4 6.6
SYIC - 04207 ER50 x 17 34, 32, 30, 28, 26, 24, 22, 20, 18, 16, 14, 12, 10, 9, 8, 7, 6 8.45

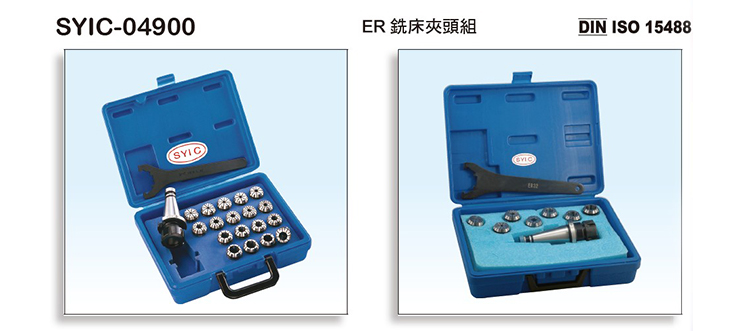

  • Whole set=(ER Collet x Q'yt)+spanner+body+plastic box.
  • Please inform Draw Bar's thread when making an order.



MODEL NO.TYPECOLLET SIZEDRAW BARWEIGHT(KGS)
SYIC - 04902 MTB3 x ER32 x 6PCS 6, 8, 10, 12, 16, 20mm M12 x 1.75P, 1/2" - 12 2.5
SYIC - 04903 MTB4 x ER32 x 6PCS 6, 8, 10, 12, 16, 20mm M16 x 2.0P, 5/8" - 11 2.7
SYIC - 04904 R8 x ER32 x 6PCS 6, 8, 10, 12, 16, 20mm 7/16" - 20 2.6
SYIC - 04905 NT30 x ER32 x 6PCS 6, 8, 10, 12, 16, 20mm M12 x 1.75P, 1/2" - 12 2.4
SYIC - 04907 MTB3 x ER40 x 7PCS 6, 8, 10, 12, 16, 20, 25mm M12 x 1.75P, 1/2" - 12 4.1
SYIC - 04908 MTB4 x ER40 x 7PCS 6, 8, 10, 12, 16, 20, 25mm M16 x 2.0P, 5/8" - 11 4
SYIC - 04909 R8 x ER40 x 7PCS 6, 8, 10, 12, 16, 20, 25mm 7/16" - 20 3.9
SYIC - 04910 NT30 x ER40 x 7PCS 6, 8, 10, 12, 16, 20, 25mm M12 x 1.75P, 1/2" - 12 3.8
SYIC - 04911 NT40 x ER40 x 7PCS 6, 8, 10, 12, 16, 20, 25mm M16 x 2.0P, 5/8" - 11 3.9
SYIC - 04913 MTB3 x ER32 x 18PCS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13,14, 15, 16, 17, 18, 19, 20mm
M12 x 1.75P, 1/2" - 12 4
SYIC - 04914 MTB4 x ER32 x 18PCS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13,14, 15, 16, 17, 18, 19, 20mm
M16 x 2.0P, 5/8" - 11 4.15
SYIC - 04915 R8 x ER32 x 18PCS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13,14, 15, 16, 17, 18, 19, 20mm
7/16" - 20 4
SYIC - 04916 NT30 x ER32 x 18PCS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13,14, 15, 16, 17, 18, 19, 20mm
M12 x 1.75P, 1/2" - 12 4
SYIC - 04917 NT40 x ER32 x 18PCS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13,14, 15, 16, 17, 18, 19, 20mm
M16 x 2.0P, 5/8" - 11 4.3
SYIC - 04919 MTB4 x ER40 x 23PCS 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14,15, 16, 17, 18, 19, 20, 21, 22,23, 24, 25, 26mm
M16 x 2.0P, 5/8" - 11 8.45
SYIC - 04920 R8 x ER40 x 23PCS 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14,15, 16, 17, 18, 19, 20, 21, 22,23, 24, 25, 26mm
7/16" - 20 8.3
SYIC - 04921 NT30 x ER40 x 23PCS 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14,15, 16, 17, 18, 19, 20, 21, 22,23, 24, 25, 26mm
M12 x 1.75P, 1/2" - 12 8
SYIC - 04922 NT40 x ER40 x 23PCS 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14,15, 16, 17, 18, 19, 20, 21, 22,23, 24, 25, 26mm
M16 x 2.0P, 5/8" - 11 8.45
SYIC - 04923 NT50 x ER40 x 23PCS 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14,15, 16, 17, 18, 19, 20, 21, 22,23, 24, 25, 26mm
M24 x 3.0P, 1" - 8 11.25
SYIC - 04925 NT40 x ER50 x 17PCS 6, 7, 8, 9, 10, 12, 14, 16, 18,20
, 22, 24, 26, 28, 30, 32, 34mm
M16 x 2.0P, 5/8" - 11 9.15
SYIC - 04926 NT50 x ER50 x 17PCS 6, 7, 8, 9, 10, 12, 14, 16, 18,20,
22, 24, 26, 28, 30, 32, 34mm
M24 x 3.0P, 1" - 8 11.95
SYIC - 04930 MTB3 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,
20, 21, 23, 25, 26mm
M12 x 1.75P, 1/2" - 12 6.45
SYIC - 04931 MTB4 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,20,
21, 23, 25, 26mm
M16 x 2.0P, 5/8" - 11 6.45
SYIC - 04932 R8 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,20,
21, 23, 25, 26mm
7/16" - 20 6.3
SYIC - 04933 NT30 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,20,
21, 23, 25, 26mm
M12 x 1.75P, 1/2" - 12 6
SYIC - 04934 NT40 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,20,
21, 23, 25, 26mm
M16 x 2.0P, 5/8" - 11 6.45
SYIC - 04935 NT50 x ER40 x 15PCS 4, 5, 6, 8, 10, 12, 13, 15, 16, 18,20,
21, 23, 25, 26mm
M24 x 3.0P, 1" - 8 9.25
  • Design: 8 slots in front and back, with good flexibility and convenient for clamping tools.
  • Steel: SUJ2 (High-carbon bearing steel: After heat treatment, it has high hardness and toughness, better grinding quality, good flexibility and longer use life.)
  • HRC: 46°
  • Surface roughness: within Rz2.5
  • Chucking range: ER8 = 0.5mm
  • ER11, 16, 20, 25, 32, 40 = 1mm. But if the internal hole is less than 2.5mm, the chucking range will be 0.5mm.
  • The internal hole is manufactured by precise honing.
  • The concentricity is inspected according to DIN-standard. There are three classes of precision: general class 0.02mm, A class 0.01mm.
  • UP class is recommended to be used with HSP clamping nut. It will have better processing stability.
  • It is used for drills, taps, mills, and reamers, etc.
  • It has flexibility and can be applied widely and variably.
  • Please inform the required precision when ordering.
  • Yearly sales quantity about 1,000,000 piece

ER Collet

MODEL NO.TYPEE - NO.SIZE RANGEDd1Ll1l2l3WEIGHT (KGS)
SYIC - 04208 ER8 4260E 1.0 ~ 5.0 8.5 8 13.5 10.8 2.98 1.5 0.005
SYIC - 04211 ER11 4009E 1.0 ~ 7.0 11.5 11 18 13.5 3.8 2.5 0.01
SYIC - 04216 ER16 426E 1.0 ~ 10 17 16 27.5 20.8 6.26 4 0.03
SYIC - 04220 ER20 428E 2.0 ~ 13 21 20 31.5 23.9 6.36 4.8 0.04
SYIC - 04225 ER25 430E 2.0 ~ 16 26 25 34 25.9 6.66 5 0.06
SYIC - 04232 ER32 470E 3.0 ~ 20 33 32 40 30.9 7.16 5.5 0.1
SYIC - 04240 ER40 472E 3.0 ~ 26 41 40 46 34.9 7.66 7 0.25
SYIC - 04250 ER50 477E 6.0 ~ 34 52 50 60 46 13.4 8.5 0.45
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.

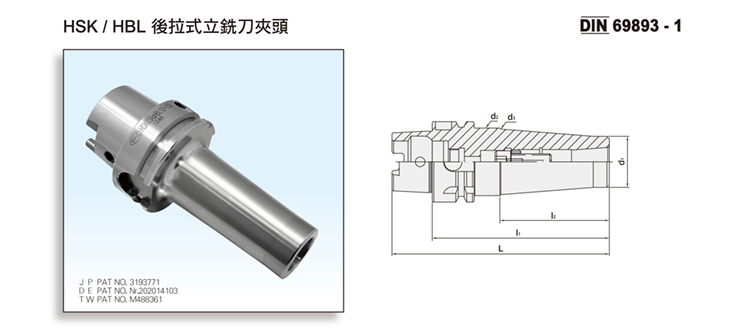

MODEL NO.TYPE - l1Ll2d1d2d3T
35456H HSK50A x HBL12 - 110 135 68 31.75 42 40.79 M10 x 1.5P
35458H HSK50A x HBL12 - 130 155 75.12 31.75 42 - M10 x 1.5P
35460H HSK50A x HBL20 - 120 145 54.66 38.1 42 - M12 x 1.75P
35462H HSK50A x HBL20 - 150 175 54.45 38.1 42 - M12 x 1.75P
35476H HSK63A x HBL12 - 110 142 79.22 31.75 37.79 - M10 x 1.5P
35478H HSK63A x HBL12 - 150 182 119.22 31.75 41.29 - M10 x 1.5P
35480H HSK63A x HBL20 - 120 152 89.22 38.1 45.02 - M12 x 1.75P
35482H HSK63A x HBL20 - 140 172 111.13 38.1 45 - M12 x 1.75P
35494H HSK100A x HBL12 - 120 170 79.05 31.75 37.78 - M10 x 1.5P
35496H HSK100A x HBL20 - 135 185 89.02 38.1 45 - M12 x 1.75P
35498H HSK100A x HBL25 - 150 200 118.13 44.45 53.89 - M24 x 1.5P
  • Each collet chuck is supplied with a nut but not including spanner and collet.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is nee

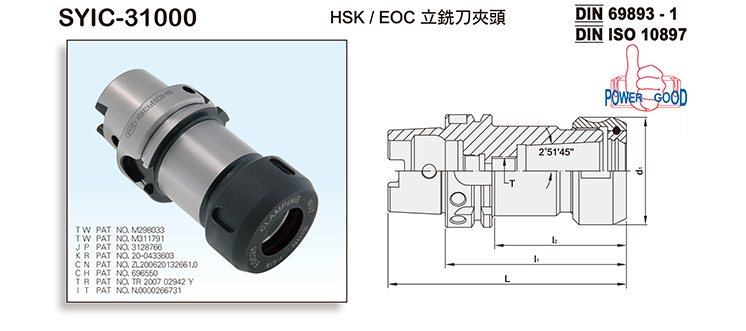

MODEL NO.TYPE l1Ll2d1TSIZE RANGEWEIGHT (KGS)
SYIC - 31002 HSK50A x EOC16 - 100 125 74 43 M12 x 1.75P 2.0 ~ 16 0.7
SYIC - 31004 HSK50A x EOC16 - 120 145 94 43 M12 x 1.75P 2.0 ~ 16 0.9
SYIC - 31006 HSK50A x EOC25 - 100 125 58 60 M16 x 2.0P 3.0 ~ 25 1.1
SYIC - 31008 HSK50A x EOC25 - 120 145 78 60 M16 x 2.0P 3.0 ~ 25 1.3
SYIC - 31010 HSK50A x EOC25 - 150 175 108 60 M16 x 2.0P 3.0 ~ 25 1.5
SYIC - 31012 HSK50A x EOC32 - 120 145 78 72 M20 x 2.0P 4.0 ~ 32 2.1
SYIC - 31014 HSK50A x EOC32 - 150 175 108 72 M20 x 2.0P 4.0 ~ 32 2.3
SYIC - 31022 HSK63A x EOC16 - 100 132 69 43 M12 x 1.75P 2.0 ~ 16 1.1
SYIC - 31024 HSK63A x EOC16 - 120 152 89 43 M12 x 1.75P 2.0 ~ 16 1.2
SYIC - 31026 HSK63A x EOC25 - 100 132 72 60 M16 x 2.0P 3.0 ~ 25 1.3
SYIC - 31028 HSK63A x EOC25 - 120 152 92 60 M16 x 2.0P 3.0 ~ 25 1.5
SYIC - 31030 HSK63A x EOC25 - 150 182 122 60 M16 x 2.0P 3.0 ~ 25 1.7
SYIC - 31032 HSK63A x EOC32 - 120 152 78 72 M20 x 2.0P 4.0 ~ 32 2.3
SYIC - 31034 HSK63A x EOC32 - 150 182 108 72 M20 x 2.0P 4.0 ~ 32 2.5
SYIC - 31042 HSK100A x EOC16 - 100 150 61 43 M12 x 1.75P 2.0 ~ 16 3.4
SYIC - 31044 HSK100A x EOC16 - 120 170 81 43 M12 x 1.75P 2.0 ~ 16 3.6
SYIC - 31046 HSK100A x EOC25 - 100 150 61 60 - 3.0 ~ 25 3.5
SYIC - 31048 HSK100A x EOC25 - 120 170 81 60 M16 x 2.0P 3.0 ~ 25 3.7
SYIC - 31050 HSK100A x EOC25 - 150 200 111 60 M16 x 2.0P 3.0 ~ 25 4.1
SYIC - 31052 HSK100A x EOC32 - 130 180 91 72 M20 x 2.0P 4.0 ~ 32 4.5
SYIC - 31054 HSK100A x EOC32 - 150 200 111 72 M20 x 2.0P 4.0 ~ 32 4.7
  • d1 tolerance: h6.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

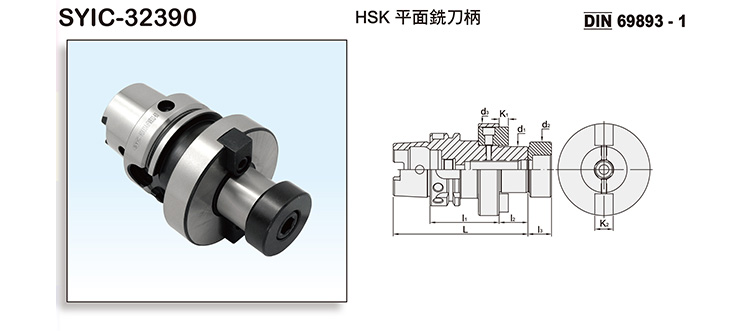

MODEL NO.TYPE d1 - l1Ll2l3d2d3K1K2WEIGHT (KGS)
SYIC - 32392 HSK40A x FMB16 - 50 87 17 - - 40 3.8 8 0.7
SYIC - 32394 HSK40A x FMB22 - 60 99 19 14 26 52 4.8 10 0.8
SYIC - 32396 HSK40A x FMB27 - 60 101 21 16 31.5 60 5.8 12 1
SYIC - 32398 HSK40A x FMB32 - 60 104 24 16 41 78 6.8 14 1.1
SYIC - 32402 HSK50A x FMB16 - 50 92 17 - - 40 3.8 8 1.1
SYIC - 32404 HSK50A x FMB22 - 60 104 19 14 26 48 4.8 10 1
SYIC - 32406 HSK50A x FMB27 - 60 106 21 16 31.5 60 5.8 12 1.3
SYIC - 32408 HSK50A x FMB32 - 60 109 24 16 41 78 6.8 14 1.5
SYIC - 32412 HSK63A x FMB16 - 50 99 17 - - 40 3.8 8 1.2
SYIC - 32414 HSK63A x FMB22 - 50 101 19 14 26 50 4.8 10 1.3
SYIC - 32416 HSK63A x FMB27 - 60 113 21 16 31.5 53 5.8 12 1.5
SYIC - 32418 HSK63A x FMB32 - 60 116 24 16 41 78 6.8 14 1.6
SYIC - 32420 HSK63A x FMB40 - 60 117 25 20.5 48 80 8.3 16 2.1
SYIC - 32442 HSK100A x FMB22 - 50 119 19 14 26 48 4.8 10 2.7
SYIC - 32444 HSK100A x FMB27 - 50 121 21 16 31.5 60 5.8 12 2.9
SYIC - 32446 HSK100A x FMB32 - 50 124 24 16 41 78 6.8 14 3
SYIC - 32448 HSK100A x FMB40 - 60 135 25 20.5 48 80 8.3 16 4
SYIC - 32450 HSK100A x FMB50 - 70 150 30 25 68 120 9.7 19 5.1
SYIC - 32452 HSK100A x FMB60 - 70 160 40 - - 129 12.5 25.4 5.5

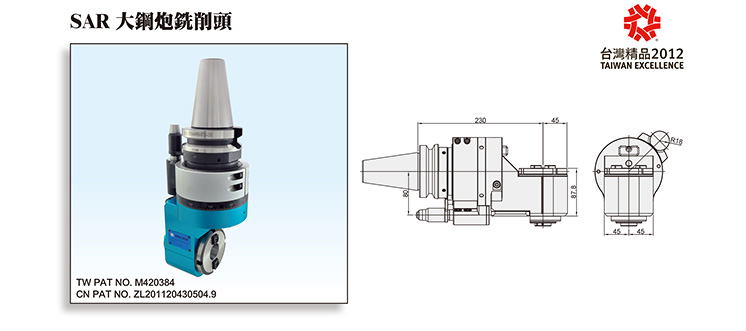

EL NO.TYPETORQUEWEIGHT (KGS)
SYIC - 12.643 BT50 x SAR50 / BT30 - 230 50 N-m 16.1
SYIC - 27.643 SBT50 x SAR50 / BT30 - 230 50 N-m 16.1
  1. The spindle chuck is designed to be #30 taper type, which can be used to match multiple and suitable adapters according to different processing requirements.
  2. Gear ratio 1:1, the spindle doesn’t need to turn counterclockwise.
  3. The fixed block is available for coolant system.
  4. The design of angle scale enables users to easily adjust to the processing angles they need.
  5. Max. revolution: 3000 rpm.
  6. Standard taper for the spindle chuck is #30(BT30). Other types of taper can be custom-made.
  7. Water pressure: 7kgf/cm².

Matched Adapters:

MODEL NO.TYPEd1SIZE RANGE
25.122.16.050 SBT30 x ER16A - 50 28 Ø1.0 ~Ø10
25.122.16.070 SBT30 x ER16A - 70 28 Ø1.0 ~Ø10
25.122.20.050 SBT30 x ER20A - 50 34 Ø1.0 ~Ø13
25.122.20.070 SBT30 x ER20A - 70 34 Ø1.0 ~Ø13
25.122.25.070 SBT30 x ER25 - 70 42 Ø1.0 ~Ø16
25.122.32.070 SBT30 x ER32 - 70 50 Ø2.0 ~Ø20

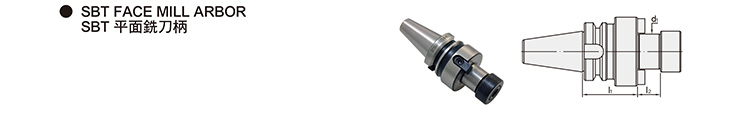

MODEL NO.TYPEd1l2
25.151.68.045 SBT30 x FMA25.4 - 45 25.4 20
25.153.22.045 SBT30 x FMB22 - 45 22 19
25.153.27.045 SBT30 x FMB27 - 45 27 20

MODEL NO.TYPEd1SIZE RANGE
25.658.06.045 SBT30 x SKS6 - 45 18 Ø1.0 ~Ø6
25.658.06.060 SBT30 x SKS6 - 60 18 Ø1.0 ~Ø6
25.658.10.045 SBT30 x SKS10 - 45 30 Ø2.0 ~Ø10
25.658.10.060 SBT30 x SKS10 - 60 30 Ø2.0 ~Ø10
25.658.13.060 SBT30 x SKS13 - 60 35 Ø3.0 ~Ø13
25.658.16.060 SBT30 x SKS16 - 60 40 Ø3.0 ~Ø16
25.658.20.060 SBT30 x SKS20 - 60 48.5 Ø3.0 ~Ø20

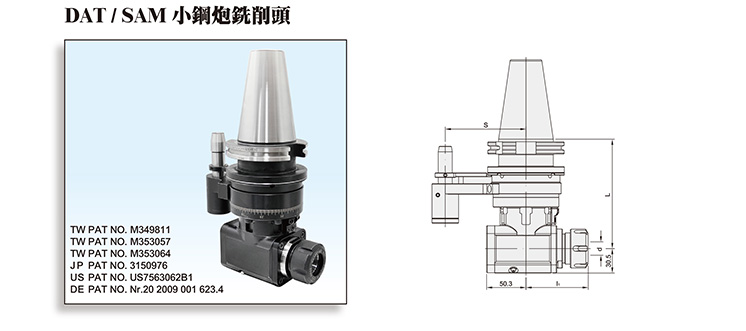

WITH COOLANT SYSTEM

MODEL NO.TYPELl1SIZE RANGESTORQUECOLLETWEIGHT (KGS)
51.635.10.136 DAT40 x SAM10S - 136.45 136.45 87 Ø 2.0 ~ Ø 10 65 20 N-m SKS10 5.2
51.635.13.136 DAT40 x SAM13S - 136.45 136.45 87 Ø 3.0 ~ Ø 13 65 20 N-m SKS13 5.2
51.635.16.136 DAT40 x SAM16S - 136.45 136.45 89.5 Ø 3.0 ~ Ø 16 65 20 N-m SKS16 5.2
51.635.20.136 DAT40 x SAM20S - 136.45 136.45 90 Ø 3.0 ~ Ø 20 65 20 N-m SKS20 5.2
51.636.16.136 DAT40 x SAM16E - 136.45 136.45 87 Ø 1.0 ~ Ø 10 65 20 N-m ER16 5.2
51.636.20.136 DAT40 x SAM20E - 136.45 136.45 87 Ø 1.0 ~ Ø 13 65 20 N-m ER20 5.2
51.636.25.136 DAT40 x SAM25E - 136.45 136.45 87 Ø 1.0 ~ Ø 16 65 20 N-m ER25 5.2
51.636.32.136 DAT40 x SAM32E - 136.45 136.45 82 Ø 2.0 ~ Ø 20 65 20 N-m ER32 5.2
52.635.10.139 DAT50 x SAM10S - 139.7 139.7 87 Ø 2.0 ~ Ø 10 80 20 N-m SKS10 6.3
52.635.13.139 DAT50 x SAM13S - 139.7 139.7 87 Ø 3.0 ~ Ø 13 80 20 N-m SKS13 6.3
52.635.16.139 DAT50 x SAM16S - 139.7 139.7 89.5 Ø 3.0 ~ Ø 16 80 20 N-m SKS16 6.3
52.635.20.139 DAT50 x SAM20S - 139.7 139.7 90 Ø 3.0 ~ Ø 20 80 20 N-m SKS20 6.3
52.636.16.139 DAT50 x SAM16E - 139.7 139.7 87 Ø 1.0 ~ Ø 10 80 20 N-m ER16 6.3
52.636.20.139 DAT50 x SAM20E - 139.7 139.7 87 Ø 1.0 ~ Ø 13 80 20 N-m ER20 6.3
52.636.25.139 DAT50 x SAM25E - 139.7 139.7 87 Ø 1.0 ~ Ø 16 80 20 N-m ER25 6.3
52.636.32.139 DAT50 x SAM32E - 139.7 139.7 82 Ø 2.0 ~ Ø 20 80 20 N-m ER32 8.86
  • Please make sure the pull stud conforms to the machine type.
  • The lnstallation and Disassembly Way for PullStud:

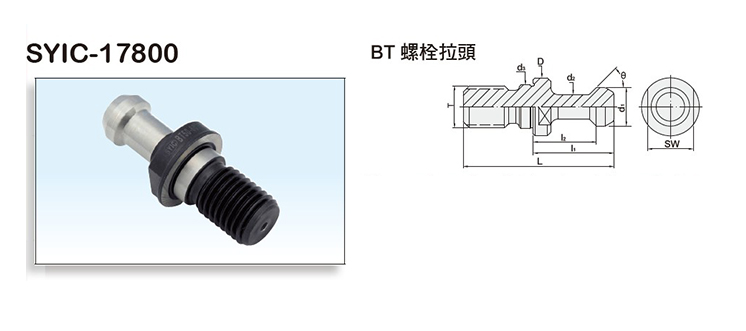

MODEL NO.TYPEθDd1d2d3Ll1l2TSWWEIGHT (KGS)
SYIC - 17801 BT30 - 45° 16.5 11 7 12.5 43 23 18 M12 13 0.04
SYIC - 17803 BT40 - 45° 23 15 10 17 60 35 28 M16 19 0.1
SYIC - 17805 BT50 - 45° 38 23 17 25 85 45 35 M24 30 0.3
SYIC - 17806 BT30 - 60° 16.5 11 7 12.5 43 23 18 M12 13 0.04
SYIC - 17808 BT40 - 60° 23 15 10 17 60 35 28 M16 19 0.1
SYIC - 17810 BT50 - 60° 38 23 17 25 85 45 35 M24 30 0.3
SYIC - 17812 BT30 - 90° 16.5 11 7 12.5 43 23 18 M12 13 0.04
SYIC - 17814 BT40 - 90° 23 15 10 17 60 35 28 M16 19 0.1
SYIC - 17816 BT50 - 90° 38 23 17 25 85 45 35 M24 30 0.3
  • Please make sure the pull stud conforms to the machine type.

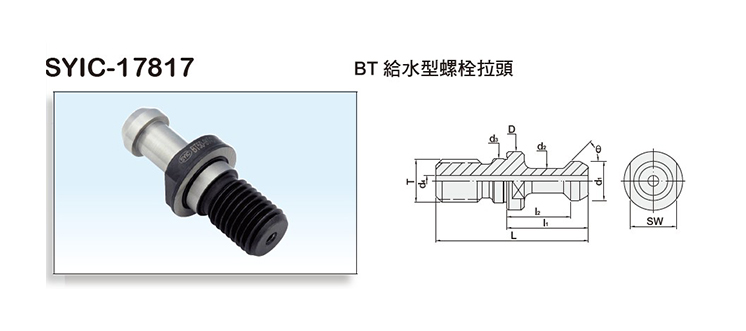

MODEL NO.TYPEθDd1d2d3d4Ll1l2TSWWEIGHT (KGS)
SYIC - 17817 BT30 - 45° 16.5 11 7 12.5 3 43 23 18 M12 13 0.1
SYIC - 17818 BT40 - 45° 23 15 10 17 4 60 35 28 M16 19 0.1
SYIC- 17818 - MAZAK BT40 - 45° 22 18.79 12.44 17 7 44.1 19.1 14.02 M16 19 0.1
SYIC - 17820 BT40 - 60° 23 15 10 17 4 60 35 28 M16 19 0.1
SYIC - 17822 BT40 - 90° 23 15 10 17 4 60 35 28 M16 19 0.1
SYIC - 17824 BT50 - 45° 38 23 17 25 5 85 45 35 M24 30 0.3
SYIC- 17824 - MAZAK BT50 - 45° 35.5 28.95 20.8 25 10 65.4 25.4 17.78 M24 30 0.3
SYIC - 17826 BT50 - 60° 38 23 17 25 5 85 45 35 M24 30 0.3
SYIC - 17828 BT50 - 90° 38 23 17 25 5 85 45 35 M24 30 0.3


Other Product In Group "รับจัดหาสินค้าอุตสาหกรรมและอะไหล่ทุกชนิด (12)"
