Product Information :

Name :
เครื่องลับมีด Tormek
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. TORMEK
Brand :
TORMEK
Model :
เครื่องลับมีด Tormek T-8 Tormek T-7 Tormek T-4
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
เครื่องลับมีด Tormek T-8 Tormek T-4 อเนกประสงค์จากสวีเดิน รับประกันมอเตอร์ 7 ปีเต็ม

Product Detail :

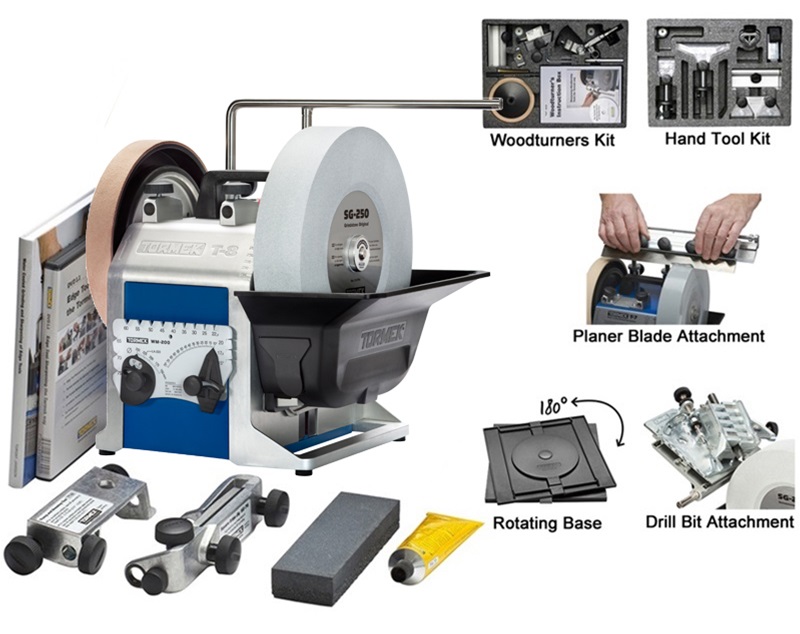

New: Tormek T-8 Water Cooled Sharpening System

Tormek T-8

Find your reseller >>

TORMEK T-8 maximises the precision thanks to the revolutionary fully cast housing which guarantees minimal play for the Universal support. This gives you the best conditions possible to succeed with your sharpening. Tormek's unique drive system is efficient and manages to hold a constant speed, even under full load. The Tormek Original Grindstone sharpens all qualities of steel, including HSS. The machine features a number of elaborated details, like instant stone locking with EzyLock, water trough with lift and a removable magnet scraper for efficient cleansing.


Dimensions: Width 270 mm (10 5/8"), Depth 270 mm (10 5/8"), Height 330 mm (12")
Weight: Shipping weight 18.2 kg (40.1 lbs), Machine only 14.8 kg (32.6 lbs)
Grindstone: Tormek Original Grindstone, Aluminium oxide, 250×50 mm (10"×2") 90 rpm, torque 14.7 Nm
Leather Honing Wheel: 220×31 mm (8 5/8"×1¼")
Main Shaft: Stainless steel main shaft, stone hardware and EzyLock.
Housing: Zinc cast top and frame. Sides in ABS plastic.
Motor: Industrial single phase, 200 W (input) 230 V, 50 Hz or 115 V, 60 Hz. Continuous duty, Maintenance free. Silent running, 54 dB. 25,000 hour life


T-8 Fully cast housing   T-8 Integrated sleeves

On the new T-8 model, Tormek has integrated the previous mounted sleeves for the Universal Support into the fully cast housing. That guarantees minimal play for the Universal Support; an innovation which improves the control of the sharpening and increases the accuracy of the final results.

T-8 Side view   T-8 Top view

With an updated design and several upgraded details, the T-8 gives you the best conditions possible for a successful sharpening with top results.

T-8 Screw lift   T-8 Magnetic Scraper

The Advanced Water Trough has been further improved with a screw lift for an easier fitting and a magnetic scraper for efficient cleansing.

T-8 Water Trough   T-8 Water Chute

For long tools that drip water over the edge of the lip (like chef's knives and planer blades), you can add the water chute. Set the widest edge of the chute onto the tab in the middle of the lip of the trough and the water chute will direct the water back into the trough from even the longest tools.

T-8 Scraper for water trough   Magnet Cleans the Stone of Steel Particles

The removable scraper incorporates a strong magnet, which attracts the steel particles ground from the tools being sharpened. This keeps your stone clean and cutting more freely. These small steel particles would otherwise be pressed into the stone surface and can affect the sharpening. When you clean the water trough, you'll find that most of the steel will be located on the magnet. When you remove the scraper, the magnet will release the steel particles and you can easily clean the trough.



The T-8 model is delivered with these accessories

SE-77 Square Edge Jig

Square Edge Jig

TT-50 Truing and Dressing Tool

Truing and Dressing Tool

SP-650 Stone Grader

Stone Grader

WM-200 AngleMaster

AngleMaster

PA-70 Honing Compound

Honing Compound

HB-10 Handbook

Handbook

Tormek DVD

Tormek DVD

7 year warranty
Certificates T-8

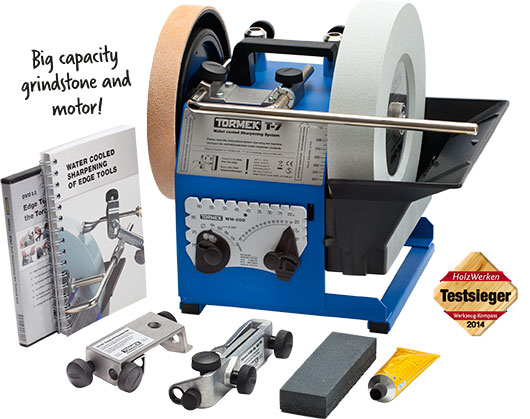

Tormek T-7 Water Cooled Sharpening System

Tormek T-7

TORMEK T-7 is designed for the toughest work and can run continuously without overheating. You can sharpen practically all common edge tools to a perfect edge. The Tormek Original Grindstone sharpens all qualities of steel including HSS. The maintenance free industrial quality motor with ball bearings, maintains a constant speed even under full load. Stainless steel main shaft with EzyLock. Sturdy steel frame with ED coating for best protection. Extra wide water trough, magnet for collecting steel particles and removable water chute for long tools. Plus, a number of accessories included in the package, see below.


Dimensions: Width 270 mm (10 5/8"), Depth 250 mm (10"), Height 325 mm (12¾")
Weight: Shipping weight 16.8 kg, Machine only 14.2 kg
Grindstone: Tormek Original Grindstone, Aluminium oxide, 250×50 mm (10"×2") 90 rpm, torque 14.7 Nm
Leather Honing Wheel: 220×31 mm (8 5/8"×1¼")
Main Shaft: Stainless steel main shaft, stone hardware and EzyLock.
Housing: Steel housing 3 mm (1/8") with ED base coating and a tough powder coat finish.
Motor: Industrial single phase, 200 W (input)
230 V, 50 Hz or 115 V, 60 Hz. Continuous duty, Maintenance free.
Silent running, 52 dB. 25,000 hour life


TT-50   SE-76

Truing Tool Trues the grindstone exactly round and flat. Guided by the Universal Support, which also guides the jigs. Dual knobs for smooth feed across the stone.



Square Edge Jig For plane irons and wood chisels. Max tool width 76 mm (3"), max tool thickness 9 mm (3/8"). Safety stops prevent the tool from slipping off the stone.

SP-650   LA-220

Stone Grader The fine side grades the stone for a 1000 grit finish. The coarse side of the grader reverses the stone to normal fast grinding. Activates a glazed stone.



Leather Honing Wheel After sharpening you hone away the burr and polish the bevel to the finest edge on the leather honing wheel.

US-105   Micro Adjust with scale

Universal Support with acme thread Round section without flat machining makes it faster to change position.



Micro Adjust with scale For a predetermined cutting depth when using the TT-50 Truing Tool.

Stainless steel hardware   NVR switch

Stainless steel main shaft Prevents from rust and wear on bearings. With Tormek EzyLock you need no tools for mounting and dismounting the stone.



NVR Switch Providing safety in the event of an interruption of power.

Water Chute for Long Tools   Water Chute for Long Tools

Water Chute for Long Tools For long tools that drip water over the edge of the lip (like chef’s knives and planer blades), you can add the water chute. Set the widest edge of the chute onto the tab in the middle of the lip of the trough and the water chute will direct the water back into the trough from even the longest tools.

Corrosion Protection   Magnet Cleans the Stone of Steel Particles

Corrosion Protection The sturdy steel housing on Tormek T-7 is treated with an Electro­deposition (ED) coating which provides a superior corrosion protection and forms the foundation for the tough powder coat paint finish.



Magnet Cleans the Stone of Steel Particles
The water trough incorporates a strong magnet, which attracts the steel particles worn from the tools being sharpened. This keeps your stone clean and cutting more freely.



The T-7 model is delivered with these accessories

SE-76 Square Edge Jig

Square Edge Jig

TT-50 Truing and Dressing Tool

Truing and Dressing Tool

SP-650 Stone Grader

Stone Grader

WM-200 AngleMaster

AngleMaster

PA-70 Honing Compound

Honing Compound

HB-10 Handbook

Handbook

Tormek DVD

Tormek DVD

7+3 year warranty
Certificates T-7

Tormek T-4 Water Cooled Sharpening System

Tormek T-4

PATENT PENDING

Alan Holtham – Tormek T-4

TORMEK T-4 is an enhancement of the T‑3 model taking the precision and stability to a completely new level. Vital functions like the motor and the main shaft are mounted in the zinc cast top which includes the integrated sleeves for the Universal Support. This advanced design ensures an unbeatable precision for the Universal Support, which is the foundation of the Tormek jig system.

You get a high quality machine ideal for home and hobby work which can sharpen all the common edge tools. Delivered with the Stone Grader SP-650, AngleMaster WM-200, Honing compound, DVD and the comprehensive Tormek Handbook on sharpening. Configure the T-4 with your choice of jigs according to the tools that you are choosing to sharpen. The jigs are sold separately.


Dimensions: Width 230 mm (9 1/16"), Depth 200 mm (7 7/8"), Height 260 mm (10¼")
Weight: Shipping weight 9.8 kg, Machine only 8.0 kg
Grindstone: Tormek Original Grindstone, Aluminium oxide, 200×40 mm (8"×1 5/8") 120 rpm, torque 8.4 Nm
Leather Honing Wheel: 145×26 mm (5¾"×1")
Main Shaft: Stainless steel main shaft and stone hardware. EzyLock in composite.
Housing: Zinc cast top, Impact resistant ABS plastic
Motor: Industrial single phase, 120 W (input)
230 V, 50 Hz or 115 V, 60 Hz. Duty 30 min/hour, Maintenance free.
Silent running, 54 dB. 10,000 hour life


Tormek T-4 sleeves   Tormek T-4 detail handle

With the sleeves for the Universal Support now being cast in the zinc top, together with the new Tormek stadium shaped design of the holes (patent pending) – the precision have been improved by 300 % compared to T-3.



The handle makes the machine easy to move and position. So you are not tempted to make the mistake and try to lift the machine with the Universal Support!

Tormek T-4 detail 3   Tormek T-4 detail 2

Vital parts like the motor and the main shaft are integrated with the zinc cast top.

Tormek T-4 detail 4a   Tormek T-4 detail 4b

The machine plate is now made of metal, which makes it a convenient place to store the Tormek AngleMaster (which has magnetic feet).



In short, how does the T-4 differ from the T-3?

  • Precision improved by over 300%

    This will improve your control of the sharpening – and the precision of your results.

  • Handle for easy movement

    Makes the machine easy to place and put away.

  • Machine plate in metal

    Which makes it a convenient place to store the Tormek AngleMaster (which has magnetic feet). Scale for stone diameter.

  • Jig for straight edges not included

    Now you are able to configure your Tormek right from the start with the jigs that fit your sharpening needs. For example if you only sharpen knives you will not have to pay for something you will not use.

  • Stone Grader included (because you need it)

    Regardless of what tool you will sharpen you will need it, so we decided to include it from the start. Make sure to use it and you will always have a fresh cutting stone. Also, with the Stone Grader you get two different cutting actions (fast/fine) out of your grindstone!

  • How does the T-4 precision compare to the larger T-7 machine?

    Thanks to the patented zinc cast machine head, we can achieve the same precision as with T-7, which is made with 3 mm steel housing with precision sleeves for the Universal Support.



The T-4 model is delivered with these accessories

SP-650 Stone Grader

Stone Grader

WM-200 AngleMaster

AngleMaster

PA-70 Honing Compound

Honing Compound

HB-10 Handbook

Handbook

Tormek DVD

Tormek DVD

7 year warranty
System Leaflet
